Eリンク中国の技術Co.、株式会社。
専門繊維の光通信およびCCTVの保証伝達プロダクト製造業者
|
商品の詳細:
お支払配送条件:
|
| コネクタ: | 2 x RJ45 | オプティカルポート: | 2 × SFP 1000Base-X または 100Base-FX (自動検出) |
|---|---|---|---|
| 入力電源: | 12~48VDCの4ピン ターミナル ブロック | 尺寸 (WxDxH): | 95 x 70 x 30のmm |
| 重量: | 0.25kg | ケース: | アルミケース |
| 取り付けオプション: | DINレール/壁掛け | 動作温度: | -40°Cへの75°C （- 167°F）への40°F |
| ハイライト: | Hardened Grade SFP Optical Switch,RJ45 SFP Optical Switch,DIN Rail Type SFP Optical Switch |
||
Overview

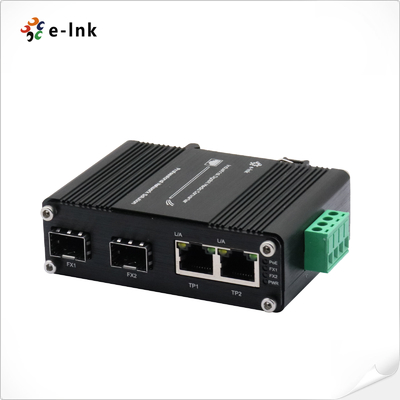

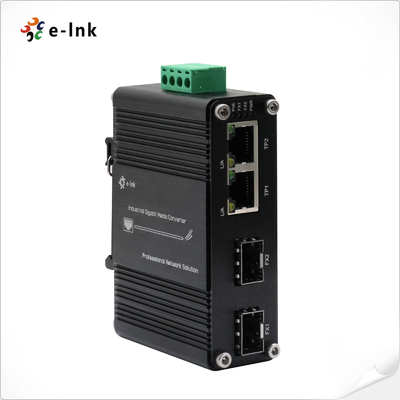

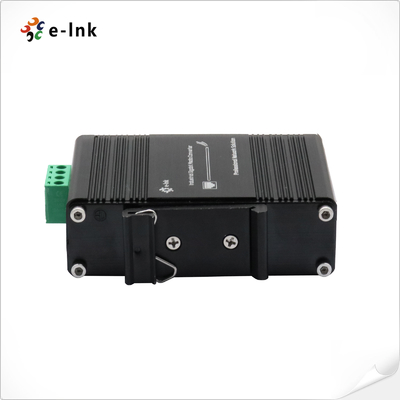

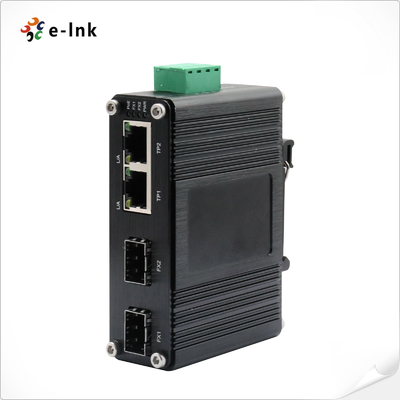

The LNK-IMC202G-SFP Series is an industrial-grade DIN rail-mounted Ethernet switch designed for
reliable network connectivity in harsh environments. It features two 10/100/1000BASE-T copper ports
and one 100/1000BASE-X SFP slot, providing flexible deployment options for both copper and fiber
networks.
Built to withstand extreme conditions, this rugged switch operates in a wide temperature range of -40°C
to +75°C and complies with EN55022 EMI standards, ensuring stable performance in industrial applications.
The SFP slot supports various fiber modules (single-mode/multi-mode, 1/2 core), enabling long-distance or
high-bandwidth connections as needed.
With support for both half-duplex and full-duplex modes and a compact DIN rail design, the LNK-IMC202G-SFP
is an ideal solution for industrial automation, surveillance systems, and other demanding networking
environments requiring robust and flexible connectivity.
Features
► Supports Link Fault Pass Through
► Supports Full/Half-duplex, Auto-negotiation
► 9K Bytes Jumbo Frame
► 12~48VDC Redundant Power Supply
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Interface | |
| Connector: | 2 x RJ45 |
| Optical Port: | 2 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 4-pin terminal block |
| Power Consumption: | 5W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| RJ45: | LINK/Activity |
| SFP: | LINK |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
| Model | Description |
| LNK-IMC202G-SFP | Hardened 2-Port 10/1001000BASE-TX to 2x100/1000BASE-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
