| 製品名: | SDIから光ファイバー変換器 | 力のアダプター: | AC 110~220V |
|---|---|---|---|
| 消費電力: | <15w> | 寸法: | 483 x 270 x 45mm （19inch 1U） |
| 重さ: | 7KG/pair | 波長: | 1310nm/1550nm |
| ハイライト: | 8 Channel Video Over Fiber Converter,RS485 Video Over Fiber Converter,3G SDI Video Over Fiber Converter |
||

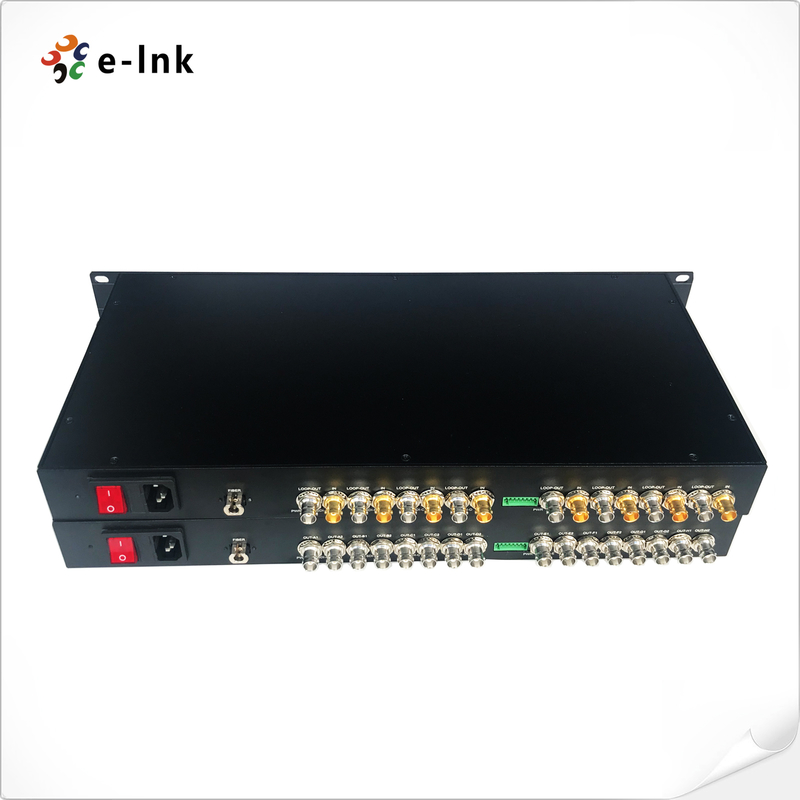

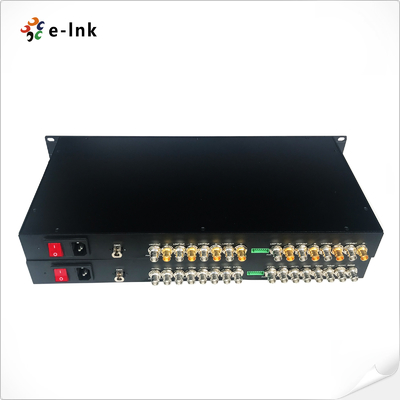

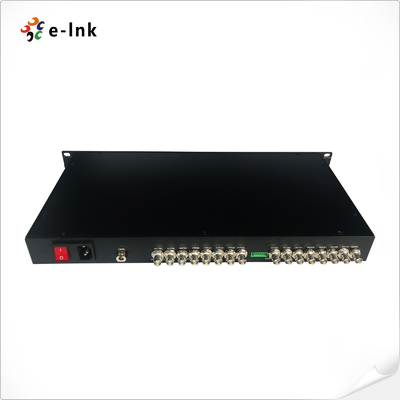

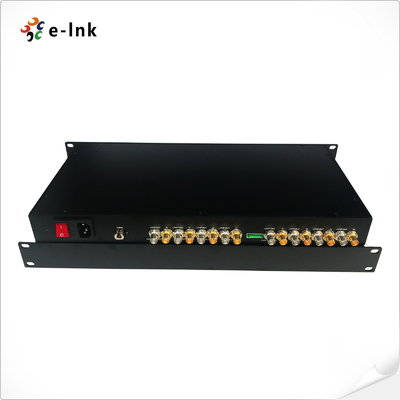

8-channel SD/HD/3G-SDI Fiber Extender Overview
The LNK-SDI-8V Series constitutes a professional 8-channel SD/HD/3G-SDI video
fibre transmission system that facilitates the delivery of broadcast-quality video
over a solitary optical fibre. This comprehensive solution comprises one transmitter
and one receiver, with the capacity to support 1080p 3G-SDI signals, accompanied
by CD-quality embedded audio and bi-directional RS-485 data transmission.
8-channel SD/HD/3G-SDI Fiber Extender Key features include:
►-channel video + 1-channel RS-485 data over single fiber
►Supports SD/HD/3G-SDI standards (up to 3Gbps per channel)
►Local monitoring via SDI loop output
►20km transmission distance (with single-mode fiber)
►Broadcast-grade video quality with zero latencyRack-mountable 1U chassis for professional installations
Ideal for broadcast studios, live event production, sports venues, and surveillance systems
requiring high-density, long-distance SDI video transmission.
8-channel SD/HD/3G-SDI Fiber Extender Technical Indexes
|
Fiber Optical interface |
|
|
Fiber interface |
Simplex LC |
|
Transmission distance |
550m-20Km |
|
Wavelength |
1310nm/1550nm |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
1080P 23.98/24/30/50/60 |
|
|
Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
|
Data |
|
|
Physical interface |
Industrial standard screw terminal |
|
Data type |
Reverse RS485 |
|
Frequency/Rate support |
Max. 57600bps for RS485 |
|
BER |
<10ˉ9 |
|
Electrical |
|
|
Power adaptor |
AC 110~220V |
|
Power consumption |
<15W |
|
LED Indicator |
|
|
SDI A/B/C/D/E/F/G/H |
SDI video |
|
PWR |
Power Supply |
|
Mechanical |
|
|
Dimensions (LxWxH) |
19inch 1U (483 x 220 x 44.45mm ) |
|
Weight |
7KG/pair |
|
Casing |
Aluminum Case |
|
Mounting Options |
Rackmount |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
8-channel SD/HD/3G-SDI Fiber Extender Ordering Information
|
Model |
Description |
|
LNK-SDI-8V |
19" 1U 8-Ch HD-SDI Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-SDI-8V1R |
19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-SDI-8V1A |
19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-3GSDI-8V |
19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-3GSDI-8V1R |
19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-3GSDI-8V1A |
19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
8-channel SD/HD/3G-SDI Fiber Extender Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure by technicians and man-made damage caused by non-natural disasters, the purchaser can directly go to the purchasing point to replace the same type of products.Or a product of comparable performance. If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
