| タイプ: | 管理された産業用ギガビットスイッチ | ポート: | 8×10/100/1000 RJ45、2×100/1000 SFP |
|---|---|---|---|
| 管理: | Webベース、VLAN/QOS/IGMP/STP/RSTP | 力: | 12–48VDC、冗長、最大5W |
| 取り付け: | DINレール、アルミケース | 認定: | セリウム、FCC、RoHS、ISO9001 |
| ハイライト: | Mini industrial managed Ethernet switch,8G 2SFP Gigabit switch DIN-Rail,Fiber optic switch with extended temperature range |
||

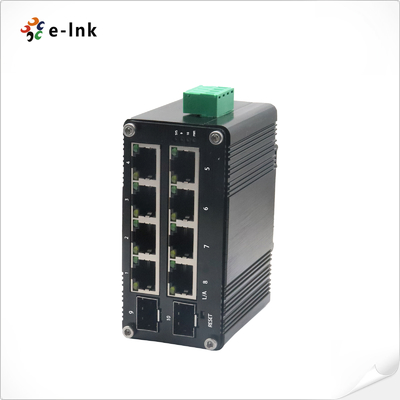

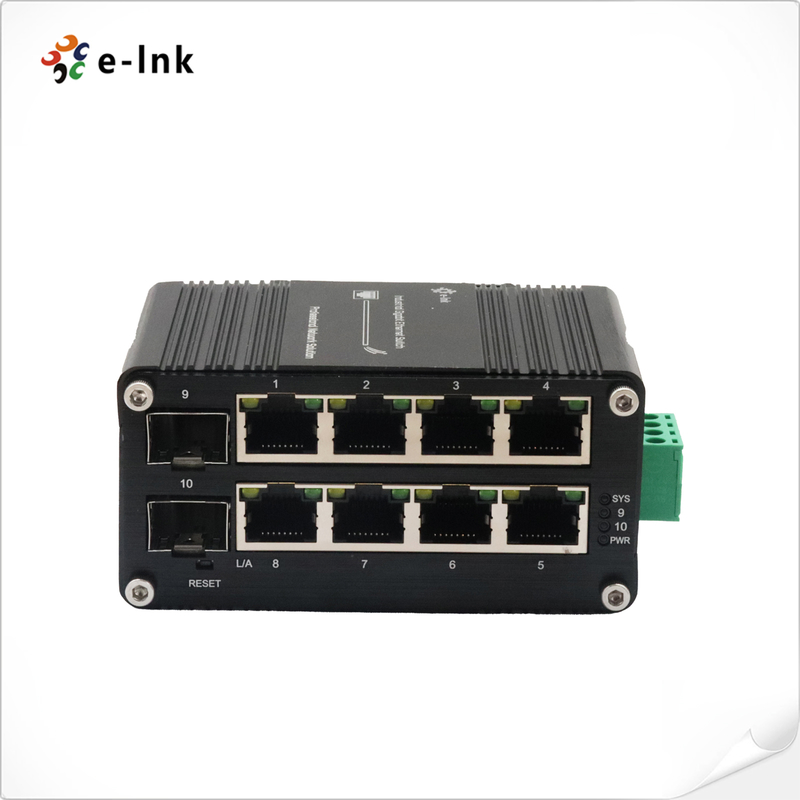

Mini Industrial Managed 8G 2SFP Gigabit Ethernet Switch DIN-Rail -40~80°C
Overview
The LNK-IMC208SG-SFP is a compact, managed industrial Gigabit switch with 8 RJ45 ports
and 2 dual-speed SFP slots. Designed for mission-critical networks, it delivers reliable
connectivity, advanced VLAN/QoS, and redundant DC power for uninterrupted operation in
harsh environments. Ideal for surveillance, wireless backhaul, and industrial automation.
Features
8× Gigabit RJ45 + 2× 100/1000Mbps SFP for flexible fiber uplinks
Wide temperature range -40°C to 80°C with rugged aluminum housing
Advanced L2 management: VLAN, QoS, IGMP Snooping, STP/RSTP
Redundant 12~48VDC power input with overload & reverse polarity protection
9K jumbo frame & 20Gbps switching capacity for high-performance traffic
DIN-Rail mountable for space-saving industrial installation
Security features: storm control, MAC filtering, broadcast/multicast protection
Energy Efficient Ethernet (IEEE 802.3az) reduces power consumption
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Backplane bandwidth |
20Gbps |
|
Packet Buffer Memory: |
9216 bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-X SFP |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, Redundant Power (4-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Fiber: |
Gigabit SFP Port: F9~F10 |
|
Dimensions (WxDxH): |
95 x 63 x 46 mm |
|
Weight: |
300g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
|
Software Features |
|
|
Redundancy Protocols |
Support STP/RSTP |
|
Multicast Support |
Support IGMP Snooping V1/V2/V3 |
|
VLAN |
Support IEEE 802.1Q 4K VLAN |
|
QOS |
Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight |
|
Diagnostic Maintenance |
Support port mirroring, Syslog, Ping |
|
Management Function |
WEB |
|
Security |
Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint |
|
Regulatory Approvals |
|
|
ISO9001, CE, RoHS, FCC |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
