商品の詳細:
お支払配送条件:
|
| Connector: | 8 x RJ45 | Optical Port: | 4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+ |
|---|---|---|---|
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) | 入力電源: | 12〜48VDC、冗長電力（6ピン端子ブロック） |
| Dimensions (WxDxH): | 149 x 114 x 50 mm | Weight: | 0.55Kg |
| ハイライト: | 4-port 1000Base-X Hardened Ethernet Switch,8-port 10/100/1000Base-T Hardened Ethernet Switch |
||
Overview

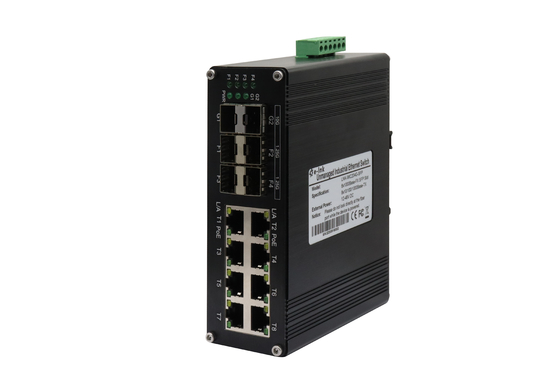

The LNK-IMC2X4S8G Series is a hardened industrial Ethernet switch engineered for robust and flexible
network connectivity in challenging environments. It features a versatile port configuration, combining 8
10/100/1000Base-T RJ45 ports for standard Ethernet devices with 4 1000Base-X SFP ports and 2 10G
Base-SR/LR SFP+ ports to support high-speed fiber connections. The switch offers 8 TP (RJ45) ports
with auto MDI/MDI-X and Full/Half duplex mode, alongside 6 fiber ports (4 SFP + 2 SFP+) capable of
single-mode or multi-mode fiber deployment (1 or 2 core). This design enables seamless integration of
devices like IP cameras and wireless access points across remote locations, leveraging gigabit and 10G
fiber links for extended reach and bandwidth. Its hardened construction and managed capabilities ensure
reliable performance and easy deployment in industrial networks, making it an ideal choice for scalable,
secure connectivity between distributed devices.
Features
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case

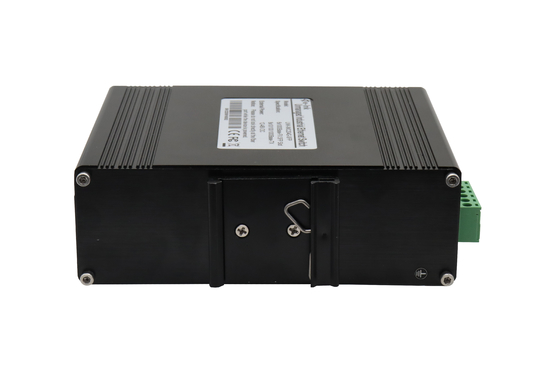

► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
► 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

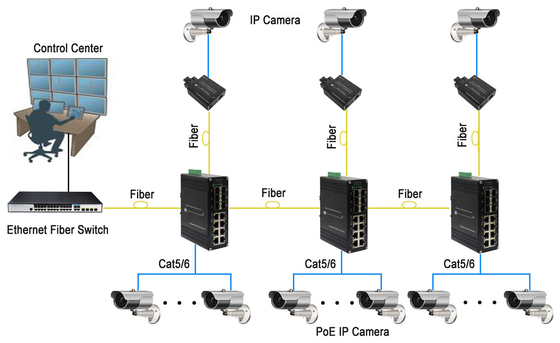

Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE802.3ae 10GBase-R | |
| IEEE802.3p QoS | |
| IEEE802.1d Spanning Tree | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| 1,488,000,000pps (10000Mbps) | |
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 4 x 1000Base-X SFP |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |

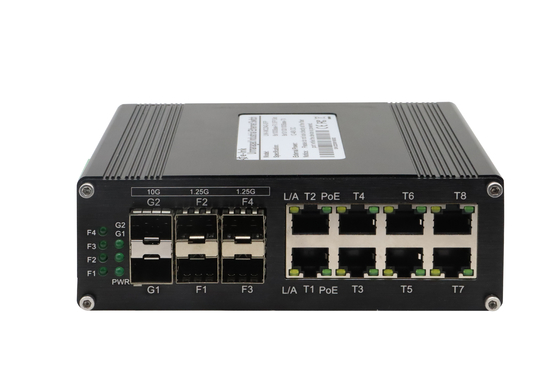

| LED Indicators: | |
| Power: | Power Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | Gigabit SFP Port: F1~F4 |
| 10G SFP+ Port: G1, G2 | |
| Dimensions (WxDxH): | 149 x 114 x 50 mm |
| Weight: | 0.55Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
| Model | Description |
| LNK-IMC2X4S8G | Industrial 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
