| コネクタ: | 8 x RJ45 | 消費電力: | 8w max。（使用中のpoe <240w） |
|---|---|---|---|
| 入力電源: | 12〜48VDC、冗長電力（6ピン端子ブロック） | 物理インターフェイス: | 工業標準の3ピン螺旋端末 |
| データ型: | 1CH RS485 Bi-direction | 寸法（wxdxh）: | 149 x 114 x 50 mm |
| 重さ: | 0.55kg |

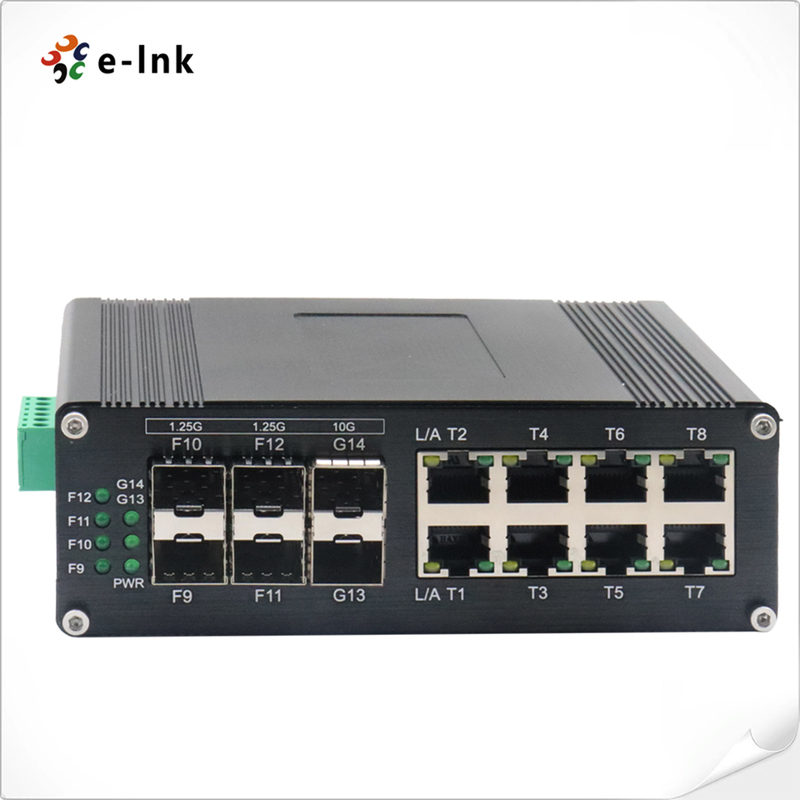

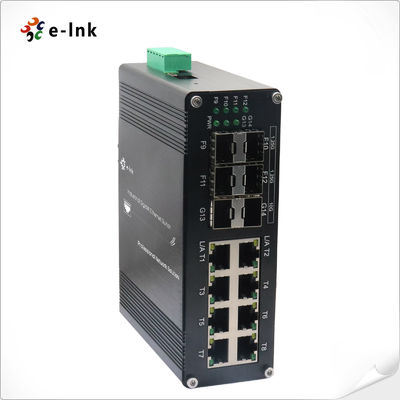

Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch
Industrial Managed 8-Port Ethernet Switch Overview
The ETH-IMC2408M Series is a ruggedized managed Ethernet switch featuring 8× 10/100/1000Base-T copper ports, 4× 1000Base-X SFP fiber slots, and 2× 10G SFP+ fiber slots.
It supports flexible connectivity with auto-negotiating RJ45 ports and dual-rate fiber interfaces for both single-mode and multi-mode transceivers.
Designed for harsh environments, this switch reliably integrates diverse network equipment—such as IP cameras and wireless access points—across distributed sites, offering robust performance and simplified management.
Industrial Managed 8-Port Ethernet Switch Features
Industrial Managed 8-Port Ethernet Switch Technical Indexes
|
Ethernet |
||||
|
Standards: |
IEEE802.3 10BASE-T |
|||
|
IEEE802.3u 100BASE-TX/FX |
||||
|
IEEE802.3ab 1000BASE-T |
||||
|
IEEE802.3z 1000BASE-X |
||||
|
IEEE802.3ae 10GBase-R |
||||
|
IEEE802.3p QoS |
||||
|
IEEE802.1d Spanning Tree |
||||
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|||
|
148,800pps (100Mbps) |
||||
|
1,488,000pps (1000Mbps) |
||||
|
1,488,000,000pps (10000Mbps) |
||||
|
Packet Buffer Memory: |
12M bits |
|||
|
Processing Type: |
Store-and-Forward |
|||
|
Backplane bandwidth |
110Gbps |
|||
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|||
|
Address Table Size: |
8K MAC Addresses |
|||
|
Interface |
||||
|
Connector: |
8 x RJ45 |
|||
|
RS485: |
1 x RS485 (Optional) |
|||
|
Optical Port: |
4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+ |
|||
|
USB-C: |
1 x USB-C (for Management) |
|||
|
RS485 Serial Interface (Optional) |
||||
|
Physical interface |
Industrial standard 3-pin screw terminal |
|||
|
Data type |
1Ch RS485 Bi-Direction |
|||
|
RS-485 signals |
Data+, Data-, GND |
|||
|
Serial port line distance (copper) |
1000 meters |
|||
|
Baud rate |
0 ~ 800kbps |
|||
|
Environmental |
||||
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity: |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Electrical and Mechanical |
||||
|
Input Power: |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|||
|
Power Consumption: |
8W Max.(PoE in Use<240W) |
|||
|
Protection: |
||||
|
Power Input Overload: |
Automatic Resettable |
|||
|
Reverse Polarity: |
Present |
|||
|
DIP Switch |
||||
|
4-digit DIP switch function
|
DIP |
Function |
Settings |
|
|
SW 1 |
VLAN |
ON - Enabled |
OFF - Disabled |
|
|
SW 2 |
Ring Management |
ON - Enabled |
OFF - Disabled |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
LED Indicators: |
||||
|
PWR: |
Power Status |
|||
|
Ethernet (Per Port): |
Link/Activity |
|||
|
Fiber: |
Gigabit SFP Port: F9~F12 |
|||
|
10G SFP+ Port: F13, F14 |
||||
|
Dimensions (WxDxH): |
149 x 114 x 50 mm |
|||
|
Weight: |
0.55Kg |
|||
|
Casing: |
Aluminum Case |
|||
|
Mounting Options: |
DIN-Rail mount |
|||
|
Software Features |
||||
|
Redundancy Protocols |
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation |
|||
|
Multicast Support |
Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q |
|||
|
VLAN |
Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN, |
|||
|
Time Management |
SNTP |
|||
|
QOS |
Flow-based redirection Flow-based rate limiting |
|||
|
ACL |
Port-based Issuing ACL ACL based on port and VLAN |
|||
|
Diagnostic Maintenance |
Support port mirroring, Syslog, Ping |
|||
|
Management Function |
Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT |
|||
|
Alarm Management |
Support 1 way relay alarm output, RMON, TRAP |
|||
|
Security |
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0 Support DHCP Snooping, Option 82,802.1X security access, |
|||
|
Advance Layer 2+ Features |
IPv4/IPv6 Management Static Route |
|||
|
Regulatory Approvals |
||||
|
ISO9001, CE, RoHS, FCC |
||||
|
EN55022:2010+AC: 2011, Class A |
||||
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
||||
|
EN 61000-3-3: 2013 |
||||
|
EN55024:2010 |
||||
|
IEC 61000-4-2: 2008 (ESD) |
||||
|
IEC 61000-4-3: 2010 (RS) |
||||
|
IEC 61000-4-4: 2012 (EFT) |
||||
|
IEC 61000-4-5: 2014 (Surge) |
||||
|
IEC 61000-4-6: 2013 (CS) |
||||
|
IEC 61000-4-8: 2009 (PFMF) |
||||
Industrial Managed 8-Port Ethernet Switch Ordering Information
|
Model |
Description |
|
ETH-IMC2408M |
Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
