10 Gigabit Ethernet NIC Flexible Scalable Data Center Solution SFP+

大画像 : 10 Gigabit Ethernet NIC Flexible Scalable Data Center Solution SFP+

商品の詳細:

起源の場所:	中国
ブランド名:	E-link
証明:	CE, RoHS, FCC
モデル番号:	LNK-C9801BF-SFP+

お支払配送条件:

最小注文数量:	1個のPC
価格:	USD $79-89
パッケージの詳細:	10ギガビットサーバーアダプター標準エクスポートパッケージ
受渡し時間:	3-10加工日
支払条件:	L/C、D/A、D/P、T/T、Western Union、MoneyGram、PayPal、クレジットカード
供給の能力:	2000pcs/月

詳細製品概要

光ポート:	1 X SFP+ファイバー（10GBase-SR、10GBase-LR、10G SFP+銅、10G SFP+ DAC、10G SFP+ AOCに適しています）	伝送速度:	10gbe
基準:	PCI-E 1.0苦情	ネットワーク仮想化:	FCoe, DPDK
Link/ACT:	LED：off =リンクなし; on = link;緑色の点滅=アクティビティ	動作温度:	0°C〜55°C（32°F〜131°F）

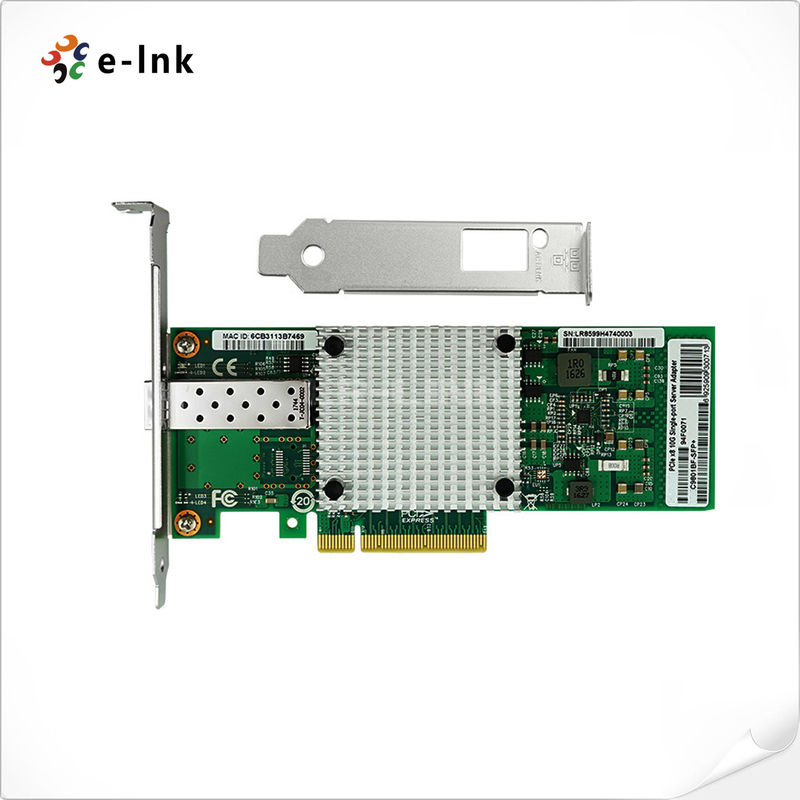

PCI Express x8 Single Port SFP+ 10 Gigabit Server Adapter (Intel 82599EN Based)

10 Gigabit Server Adapter Overview

The LNK-C9801BF-SFP+ 10G Server Adapter is a high-performance, flexible network interface card

designed to meet the rigorous demands of modern data centres. With SFP+ connectivity, it provides

scalable 10 Gigabit Ethernet throughput — essential for handling the substantial data loads produced

by multi-core servers, high-performance computing (HPC), database clusters and video-on-demand

services. Engineered to eliminate I/O bottlenecks in virtualised and unified storage environments,

this adapter ensures that mission-critical applications run with maximum reliability. Advanced hardware

optimisation features such as I/O virtualisation transform the data centre by offering outstanding

scalability, mobility and efficiency. The LNK-C9801BF-SFP+ is the ideal solution for enterprises

seeking to future-proof their network infrastructure with robust, high-speed server connections.

10 Gigabit Server Adapter Features

Powered by Intel® 82599 10 Gigabit Ethernet Controller for high-performance networking
PCI Express (PCIe) v2.0, 5.0 GT/s, x8 lanes for fast data throughput
Industry-standard SFP+ fiber ports for flexible 10GbE connectivity
Remote boot support with PXE and iSCSI functionality
Network virtualization support for enhanced data center efficiency
IEEE 802.1Q VLAN support for secure and segmented traffic management
Low-profile and full-height brackets included for versatile deployment
Multi-CPU load balancing to optimize performance across processors
Fibre Channel over Ethernet (FCoE) support for unified networking and storage
Broad NOS compatibility, supporting most major network operating systems
Intel® PROSet Utility integration for easy management via Windows Device Manager
Precision time synchronization with IEEE 1588 and 802.1as standards

10 Gigabit Server Adapter Technical Indexes

Networking
Standards:	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab 1000BASE-T
	IEEE 802.3bz 2.5G/5GBASE-T
	IEEE 802.3an 10GBASE-T
	IEEE 802.3ae 10Gbps Ethernet
	IEEE 802.3x full-duplex flow control
	PCI-E 1.0 complaint
NOS Software Support:	Windows 7 32-bit (64-bit)
	Windows 8 32-bit (64-bit)
	Windows 8.1 32-bit (64-bit)
	Windows 10 32-bit (64-bit)
	Windows Server 2003 32-bit (64-bit)
	Windows Server 2008 32-bit (64-bit)
	Windows Server 2008 R2 32-bit (64-bit)
	Windows Server 2012 32-bit (64-bit)
	Windows Server 2012 R2 32-bit (64-bit)
	Linux kernel 2.6.30 or greater (x86_64) (w/ SR- IOV support)
	FreeBSD 7.2 or laster
	Linux RHEL 5.6
	Linux RHEL 6.x
	Linux SLES 11 Sp1
	Linux SLES 10 Sp4
	OS Independent
	DOS NDIS 2
	DOS ODI EFI 1.1
	UEFI 2.1
	Vmware ESX 4.02
	Vmware ESX 4.02
	VMware Workstation
Controller:	Intel 82599
Transmission rate	10Gbe
Network Virtualization	FCoe, DPDK
Interface
Optical Port:	1 x SFP+ Fiber (suitable for 10GBASE-SR, 10GBASE-LR,10G SFP+ Copper, 10G SFP+ DAC, 10G SFP+ AOC)
LED Indicators
Link/ACT	LED: off = No Link; on = Link; Green Blinking = Activity
Environmental
Operating Temperature:	0°C to 55°C (32°F to 131°F)
Storage Temperature:	-25°C to 70°C (-13°F to 158°F)
Relative Humidity:	5% to 95% non-condensing
Manageability Features
l Preboot eXecution Environment (PXE) Support l Simple Network Management Protocol (SNMP) l Remote Network Monitoring (RMON) Statistic Counters l iSCSI Boot l Watchdog Timer
Adapter Product Features
l Intel® PROSet Utility l Plug and play specification support Receive Side Scaling l Direct Cache Access (DCA)
Advanced Software Feature
l Adapter fault tolerance (AFT) Switch fault tolerance (SFT) Adaptive load balancing (ALB) Teaming support l IEEE 802.3ad (link aggregation control protocol) PCIe Hot Plug/Active Periphera Component Interconnect (PCI) l IEEE 802.1Q VLANs l IEEE 802.3 2005* flow control support l Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol(TCP), user datagram protocol l (UDP), Internet protocol (IP) l IEEE 802.1p* l TCP segmentation large send offload l MSI-X supports Multiple Independent Queues Interrupt moderation l IPv6 offloading — Checksum and segmentation capability extended to new standard packet type

10 Gigabit Server Adapter Ordering Information

Model	Description
LNK-C9801BF-SFP+	Intel 82599 PCIe x8 10Gbps Single Port Fiber Server Adapter (1x SFP+), not including SFP+ modules
