商品の詳細:
お支払配送条件:
|
| アクセスモード: | 10/100Mbps ファストイーサネット | 送信距離: | 銅100 m、ファイバータイプに応じて繊維2〜120 km |
|---|---|---|---|
| 電源: | DC 5V/1A | 消費電力: | <2w |
| 動作温度: | -10°Cから55°C、貯蔵：-40°Cから70°C | 寸法: | 71×94×26 mm |

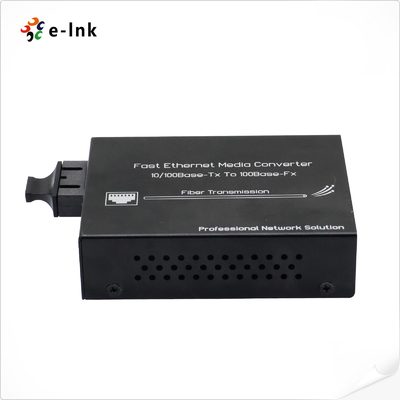

10/100M Fast Ethernet Media Converter with Fiber Support up to 120km
Overview
The LNK-1100 Series Fast Ethernet Media Converter converts 10/100Base-TX copper signals to 100Base-FX optical fiber, supporting multi-mode and single-mode fiber transmission. It extends network distances from 100m via copper to up to 120 km via fiber, making it ideal for industrial, campus, and long-distance network applications. With auto-sensing duplex, MDI/MDI-X, QoS, and flexible transmission modes, it ensures reliable and high-performance connectivity.
Features
Flexible media conversion – 10/100Base-TX to 100Base-FX fiber
Long-distance transmission – up to 120 km over single-mode fiber
Auto-sensing & duplex support – full/half duplex, MDI/MDI-X auto detection
Transmission modes – store-and-forward or 100Mbps cut-through
Enhanced network performance – QoS support for VoIP and VLAN traffic
Compact & efficient – low power consumption (<2W), MTBF 100,000 hours

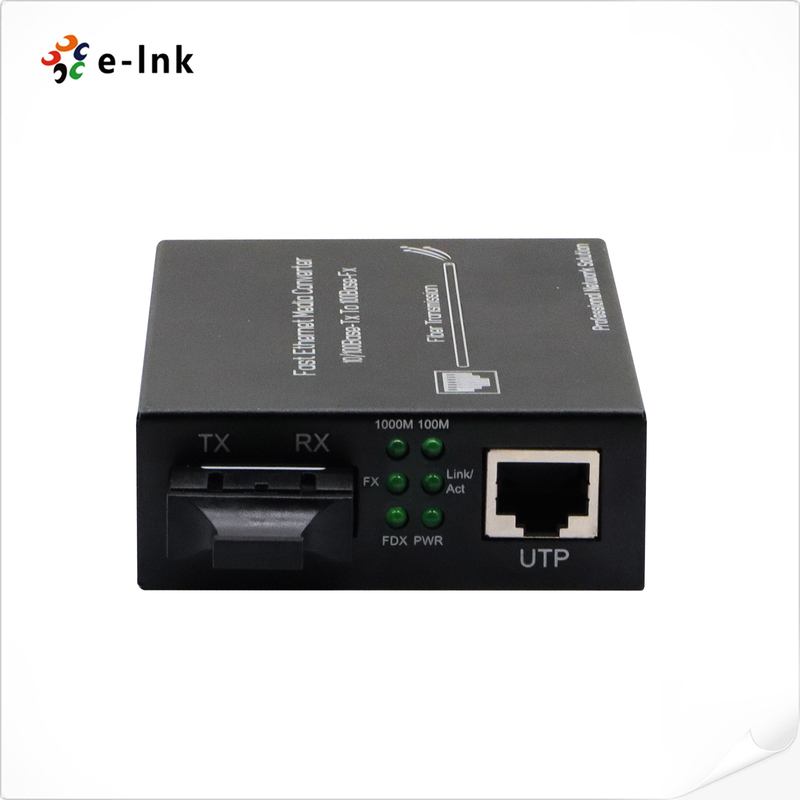

LED indicators – power, fiber link/activity, TP link/activity, duplex, rate
Flexible fiber options – multi-mode dual fiber, single-mode dual or single fiber
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode: 2 km; Dual-fiber single mode: 20/40/60/80/100/120 km; Single fiber single mode: 20/40/60/80/100 km Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: for connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm) |
|
Conversion means |
Store and Forward mode or Cut-Through mode |
|
Buffer space |
Built in 128Kb RAM for data buffer |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
BER |
<19-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
POER (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M) |
|
Power supply |
DC 5V / 1A |
|
Power consumption |
<40W (the chassis at full load), <2W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions (W x D x H) |
71 x 94 x 26 mm |
Ordering Information
|
Item |
Description |
|
LNK-1100 |
10/100Base-T to 100Base-F, multi-mode, 2km, 1310nm, SC, standalone, external power adaptor |
|
LNK-1100S-20 |
10/100Base-T to 100Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
|
LNK-S1100-20 |
10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor |
