| PoE入力: | 1×RJ45、IEEE 802.3BT、最大95W | POE出力: | 4×RJ45、IEEE 802.3AF/AT、合計75W |
|---|---|---|---|
| 延長距離: | ユニットあたり200m、最大400mのデイジーチェーン | 寸法: | 95×70×30 mm、0.25 kg |
| 動作温度: | -40°C〜80°C | 取り付け: | ディンレール /ウォールマウント |

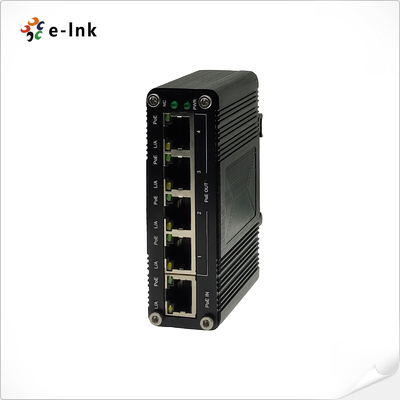

Industrial 1-Port 95W PoE++ to 4-Port Gigabit PoE Extender 400m Daisy-Chain
overview
The LNK-IPE104-90 is a rugged industrial PoE extender that converts one 802.3bt PoE++
input into four 802.3af/at Gigabit PoE outputs. Designed for point-to-multipoint deployments,
it delivers up to 75W total power budget, extends Ethernet and PoE beyond 100m, and
supports cascading up to 400m without additional power adapters. With IP40-rated aluminum
housing and wide temperature tolerance, it ensures reliable operation in harsh industrial and
outdoor environments.
Features
1× 802.3bt PoE++ Input — Accepts up to 95W power
4× Gigabit PoE Outputs — Total 75W PoE power budget
Long-Distance Extension — Extends Ethernet + PoE up to 200m; 400m with 3 extenders
Industrial Design — IP40-rated aluminum casing, -40°C to 80°C operation
Flexible Mounting — DIN-Rail & Wall-mount supported
High Reliability — 6kV surge & 8kV ESD protection, CE/FCC/RoHS certified
Technical Indexes
|
Ethernet Port |
|
|
PoE Input Port |
10/100/1000Base-TX RJ45, IEEE 802.3bt PoE Input Input Power 50~57V DC, Max 95W |
|
PoE Output Port |
1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m |
|
Cascade connection |
Support 3 grade |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
|
PoE Power Supply Type |
Mid-span and End-span |
|
PoE Pin Assignment |
1/2(+), 3/6(-),4/5(+), 7/8(-) |
|
Switch Property |
|
|
Standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control |
|
Forwarding Modes |
Store and Forward |
|
Transmission Distance |
100m |
|
MAC Table |
8K |
|
Switching Capacity |
10Gbps |
|
Packet Forwarding Rate |
14.88Mpps |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Jumbo Frame |
10K bytes |
|
Environment |
|
|
Surge Immunity |
6KV, Standard: IEC6000-4-5 |
|
ESD Protection |
6KV 1a Contact Discharge Level 3, 8KV 1b Air Discharge Level 3, Standard: IEC61000-4-2 |
|
Protection Level |
IP 40 |
|
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Operating Humidity |
0~95% (non-condensing) |
|
Physical Parameter |
|
|
Dimensions (WxDxH) |
95 x 70 x 30 mm |
|
Weight |
0.25Kg |
|
Casing |
Aluminum Case |
|
Mounting Options |
DIN-Rail / Wall-mount |
|
Certifications |
|
|
Certifications |
CE, FCC, RoHS |
Ordering Information
|
Model |
Description |
|
LNK-IPE104-90 |
Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |

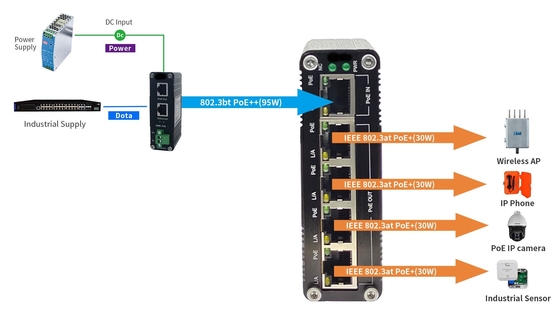

Application
Dimension
