LNK-B-DVI-1DA1GO DVI Fiber Extender with Audio RS232 GPIO over Fiber

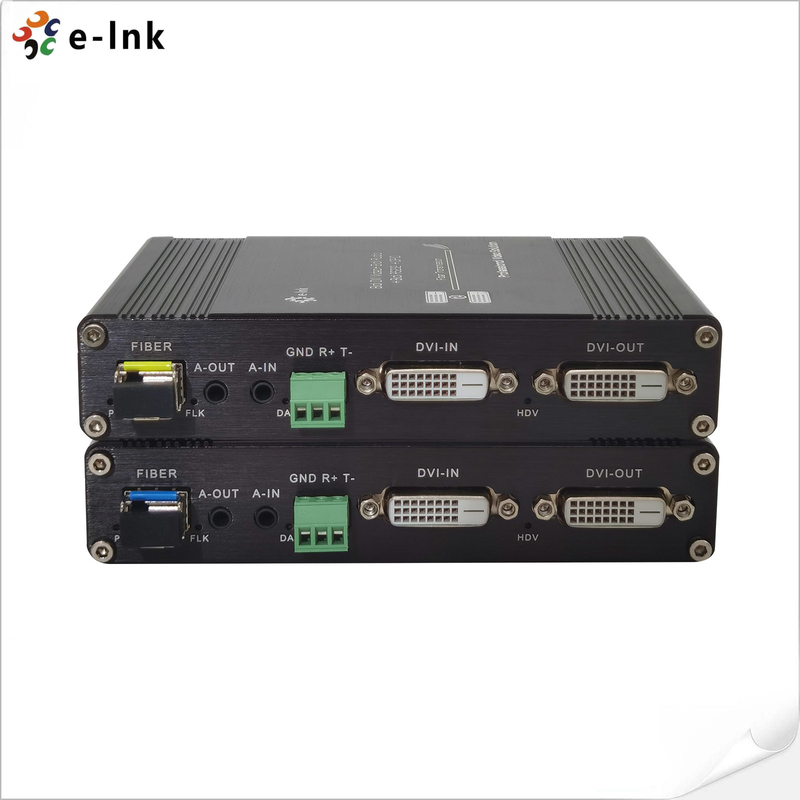

大画像 : LNK-B-DVI-1DA1GO DVI Fiber Extender with Audio RS232 GPIO over Fiber

商品の詳細:

起源の場所:	中国
ブランド名:	E-link
証明:	CE, RoHS, FCC
モデル番号:	LNK-B-DVI-1DA1GO

お支払配送条件:

最小注文数量:	1個のPC
価格:	USD $259-279
パッケージの詳細:	DVI オーバーファイバーエクステンダー標準輸出パッケージ
受渡し時間:	3-10加工日
支払条件:	L/C、D/A、D/P、T/T、Western Union、MoneyGram、PayPal、クレジットカード
供給の能力:	1000pcs/月

詳細製品概要

ビデオコネクター:	DVI-D	光ファイバーインターフェイス:	LCコネクタ
電源:	DC 12V/1a	電力散逸:	最大6W
寸法:	14811528mm	動作温度:	-5℃〜 +70℃
ハイライト:	DVI fiber extender with audio , DVI to fiber converter with RS232 , DVI video extender with GPIO

1Ch 1080P Bidi DVI + 1Ch Bidi RS232 + 1Ch Bidi Stereo Audio + GPIO over Fiber Extender

LNK-B-DVI-1DA1GO DVI Fiber Extender Overview

The LNK-B-DVI-1DA1GO fibre optic extender is a comprehensive, integrated solution for professional,

long-distance AV signal transmission. Seamlessly extending high-definition DVI video up to 1080p alongside

bi-directional RS232 serial data, GPIO control signals and external stereo audio, it operates over

a single fibre optic cable. Its multifunctional design eliminates the need for separate cabling, thus simplifying

installation and reducing costs. Designed for mission-critical environments, it provides exceptional signal

integrity, complete immunity to EMI/RFI interference and the inherent security of fibre optics. Its unparalleled

stability and all-in-one functionality make it the ideal choice for demanding applications in broadcast studios,

command and control centres, large-scale digital signage and sophisticated conference systems.

LNK-B-DVI-1DA1GO DVI Fiber Extender Features

► Transmits bi-directional DVI video signals up to 20km over a single fiber optic cable
► Supports video resolutions up to 1920×1200 @ 60Hz
► Enables bi-directional external stereo audio transmission for high-quality sound
► Supports bi-directional RS232 signal transmission with self-adaptive baud rate
► Provides GPIO (General-Purpose Input/Output) signal support for flexible applications
► Fully compliant with DVI 1.0 and HDCP 1.2 standards
► Auto-matching compatibility with various source and display devices
► Built-in automatic adjustment system ensures smooth, clear, and stable images
► Integrated ESD protection system for enhanced reliability
► Plug-and-play design for quick and easy installation

LNK-B-DVI-1DA1GO DVI Fiber Extender Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Resolution	19201200@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz
	Connector	DVI-D
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
GPIO	Interface	Industrial terminal
RS232	Interface	Industrial terminal
	Signal direction	Bi-directional
	Baud rate	Self-adaptive, Max:115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 12V/1A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	14811528mm
	The warranty	1-year warranty

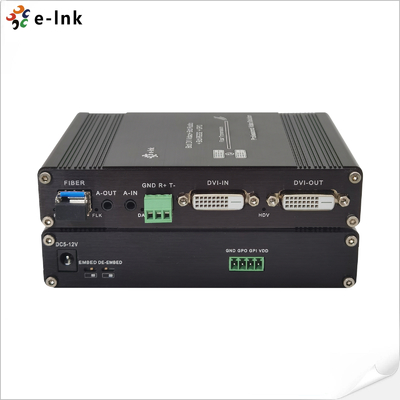

LNK-B-DVI-1DA1GO DVI Fiber Extender Interfaces

LNK-B-DVI-1DA1GO DVI Fiber Extender with Audio RS232 GPIO over Fiber 0

LNK-B-DVI-1DA1GO DVI Fiber Extender Application

LNK-B-DVI-1DA1GO DVI Fiber Extender with Audio RS232 GPIO over Fiber 1

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
