High Density 4U Mux Chassis 16 Slots Hot Swappable Modules Easy Install

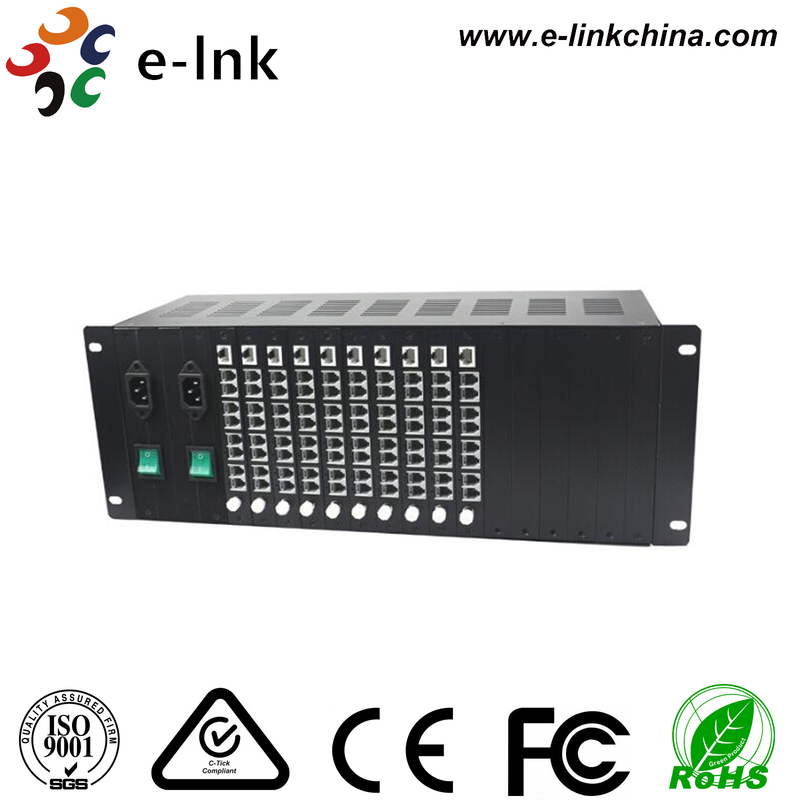

大画像 : High Density 4U Mux Chassis 16 Slots Hot Swappable Modules Easy Install

商品の詳細:

起源の場所:	中国
ブランド名:	E-link
証明:	CE, RoHS, FCC
モデル番号:	LNK-PR16-2A

お支払配送条件:

最小注文数量:	1個のPC
価格:	USD $139-159
パッケージの詳細:	4U電話ファイバーMUXラック標準エクスポートパッケージ
受渡し時間:	3-10加工日
支払条件:	L/C、D/A、D/P、T/T、Western Union、MoneyGram、PayPal、クレジットカード
供給の能力:	1000pcs/月

詳細製品概要

構造:	19" 4U棚	出力:	DC5V 16A
電源入力:	AC電圧：AC 100〜260V;周波数：50/60 Hz	寸法（mm）:	485x280x176 （LxWxH）
重さ:	7.4kg	動作温度:	-30°C から +55°C
ハイライト:	4U Mux Chassis 16 slots , Hot swappable DVI converter modules , High density fiber converter chassis

4U Telephone Fiber Mux Rack

4U Telephone Fiber Mux Rack Overview

The LNK-PR-4U is a high-capacity, professional 4U chassis designed for robust and flexible telecommunications

deployment. Supporting a hybrid combination of up to 16 card-type modules (4-channel or 8-channel telephone

fibre multiplexers), it allows for a scalable system configuration of up to 128 channels. Engineered for

maximum reliability, it features a robust switch mode power supply (SMPS) that accepts 110/220 V AC input.

Its advanced electrical design prevents single-module failures from affecting others, ensuring unmatched

system stability. Built-in cooling fans enhance the chassis's longevity, and front-accessible, hot-swappable

modules and clear LED status indicators offer effortless maintenance, eliminating the need for system

downtime during upgrades or replacements.

4U Telephone Fiber Mux Rack Features

► Active/standby dual power supply design ensures uninterrupted system operation
► Equipped with two power supply options for reliable performance in diverse operating environments
► Supports simultaneous operation of 4-Channel or 8-Channel card-type Telephone Fiber Mux,

greatly enhancing system adaptability
► Hot-swappable modules allow easy maintenance and upgrades without service interruption

4U Telephone Fiber Mux Rack Technical Indexes

Parameter	Specifications
Number of slots	16
Structure	19” 4U rack
Card-type converter support	4Ch or 8Ch Card-type Telephone Fiber Mux
Power input	AC Voltage: AC 100~260V; frequency: 50/60 Hz
Power output	DC5V 16A
MTBF	> 100,000 hours
Power configuration	Single power supply; or Dual power supply for warm backup mode
Dimension (mm)	485x280x176 (LxWxH)
Weight	7.4KG
LED indication	POWER (power supply)
Construction	Metal
Operating temperature	-30°C to +55°C
Storage Temperature	-40°C to +85°C
Relative humidity	5%~90% (non condensing)

4U Telephone Fiber Mux Rack Ordering Information

Model	Description
LNK-PR16-2A	19" 4U Rack-Mount Chassis, 16-Slot, 16pcs 4CH or 8CH Card-type telephone fiber mux can be put in the Chassis, Dual Power Supply

4U Telephone Fiber Mux Rack Application
