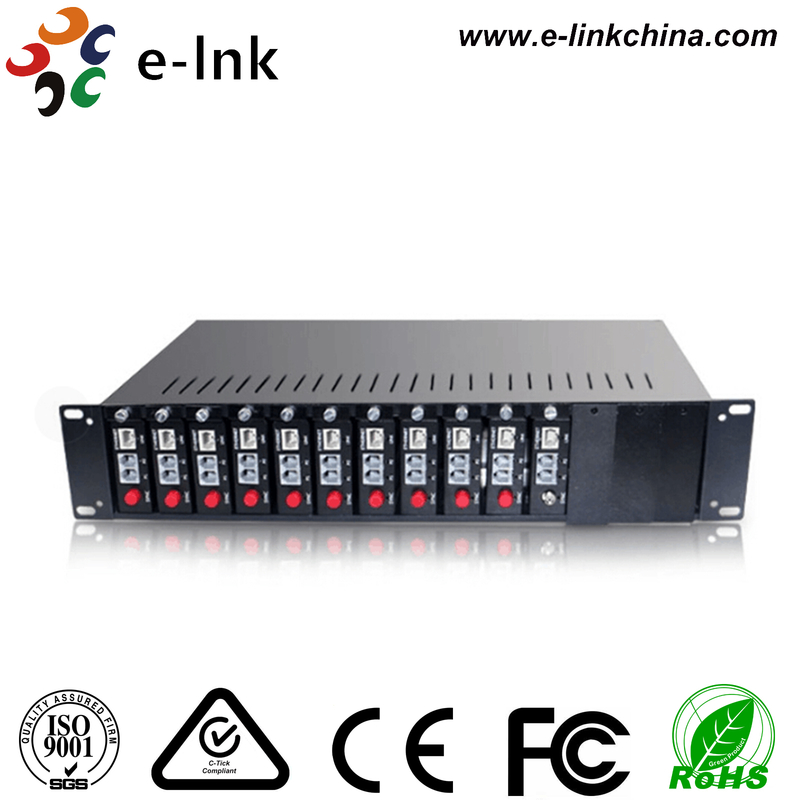

Telephone Fiber Mux Chassis 14 Slot 2U Rack Redundant Power Supply

大画像 : Telephone Fiber Mux Chassis 14 Slot 2U Rack Redundant Power Supply

商品の詳細:

起源の場所:	中国
ブランド名:	E-link
証明:	CE, RoHS, FCC
モデル番号:	LNK-PR14

お支払配送条件:

最小注文数量:	1個のPC
価格:	USD $69-89
パッケージの詳細:	2U電話ファイバーMUXラック標準エクスポートパッケージ
受渡し時間:	3-10加工日
支払条件:	L/C、D/A、D/P、T/T、Western Union、MoneyGram、PayPal、クレジットカード
供給の能力:	1000pcs/月

詳細製品概要

構造:	2Uラック	電源入力:	DC電圧：DC 36〜72V
出力:	DC12V 10A	動作温度:	-10〜55ºC
最大消費電力:	120W
ハイライト:	14 slot fiber mux chassis , 2U rack fiber mux , redundant power fiber mux

14-slots 2U Telephone Fiber Mux Rack

2U Telephone Fiber Mux Rack Overview

The LNK-PR14 is a highly reliable and cost-effective 2U chassis designed for centralized telecommunications

infrastructure. This modular rack system provides a flexible and scalable platform by housing up to 14 slots

for various module-type telephone fiber multiplexers (MUXs). Engineered for continuous operation in equipment

rooms, its standout feature is the integrated dual redundant power supply system. This system ensures zero

downtime by automatically switching to the backup power unit in case of a main power failure, guaranteeing

unparalleled service continuity and network stability for your critical voice and data links.

2U Telephone Fiber Mux Rack Features

► Active/standby dual power supply configuration ensures continuous and reliable system operation
► Supports AC 220V or DC -48V dual power input for flexible deployment in various environments
► Compatible with multiple module-type media converters operating at different rates,

enhancing system adaptability
► Hot-swappable design for easy maintenance and minimal downtime
► Supports application modules including LNK-PCM01 (1-Channel Telephone Fiber Mux)

and LNK-PCM02 (2-Channel Telephone Fiber Mux) series

2U Telephone Fiber Mux Rack Technical Indexes

Parameter	Specifications
Number of slots	14
Structure	2U rack
Dimension	90mm (H) x 485mm (W) x 230mm (D)
Power input	AC Voltage: AC 85~265V; frequency: 50/60 Hz
	DC voltage: DC 36~72V
Power output	DC12V 10A
Ripple	≤20 mv
Power configuration	dual power supply for warm backup mode
LED indication	POWER (power supply)
Max power consumption	120W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

2U Telephone Fiber Mux Rack Ordering Information

Model	Description
LNK-PR14-2A	14-slot, dual power supply-AC220V-19''2U- black-for 1Ch or 2Ch telephone fiber mux standalone

2U Telephone Fiber Mux Rack Application

Telephone Fiber Mux Chassis 14 Slot 2U Rack Redundant Power Supply 0

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
