64 Channel Analog Telephone Over Fiber Extender Ring Voltage Detection

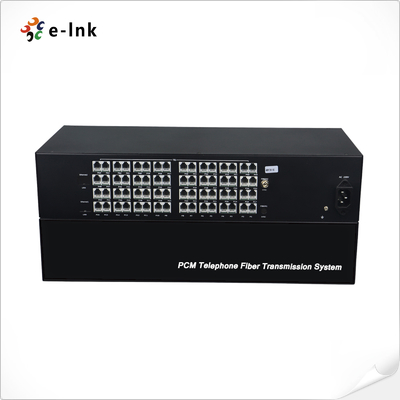

大画像 : 64 Channel Analog Telephone Over Fiber Extender Ring Voltage Detection

商品の詳細:

起源の場所:	中国
ブランド名:	E-link
証明:	CE, RoHS, FCC
モデル番号:	LNK-PCM64

お支払配送条件:

最小注文数量:	1個のPC
価格:	USD $699-759
パッケージの詳細:	64チャネルポットからファイバーコンバーター標準エクスポートパッケージ
受渡し時間:	3-10加工日
支払条件:	L/C、D/A、D/P、T/T、Western Union、MoneyGram、PayPal、クレジットカード
供給の能力:	1000pcs/月

詳細製品概要

製品名:	64チャンネル電話繊維コンバーター	インターフェイス率:	10/100 Mbps、半分/フルデュプレックス
インターフェイス標準:	IEEE 402.3/IEEE 402.1Q（VLAN）	動作温度:	-35°～75°C
パワー消費量:	3W	電源:	入力：AC110-40V 50/60Hz
ハイライト:	64 channel analog telephone extender , fiber extender ring voltage detection , DVI video fiber converter

64Ch POTS(FXO/FXS)Telephone over Fiber Mux

64Ch POTS Telephone over Fiber Overview

The E-Link 64-Channel POTS-to-Fibre Converter is a high-density solution for modernising legacy

telephone infrastructure. This powerful extender can transmit up to 64 traditional analogue phone lines

(POTS/PSTN) over a single fibre optic cable, enabling long-distance communication with crystal-clear voice quality.

The system comprises two units: an FXO unit for connecting to central office (PSTN) or PBX station lines,

and an FXS unit for connecting to standard analogue telephone devices. Key features include robust ring

voltage detection, superior signal integrity and standard RJ11 connectors for seamless integration

with existing copper-based equipment. This converter is the perfect future-proof solution

for telecoms operators, enterprises and campuses looking to leverage the reliability

and capacity of fibre while preserving their investment in analogue phones and fax machines.

64Ch POTS Telephone over Fiber Features

► Standard RJ11 telephone interface for easy connectivity
► Supports up to 64 voice channels with Caller ID and fax compatibility
► Dual voice ports: O port for switch connection, S port for user telephone
► Compatible with FXO/FXS ordinary telephones
► Supports point-to-point, cascaded, and distributed network connections with no SNR degradation
► Fiber optic power link with LED indicators for real-time system health monitoring
► Industrial-grade modular design ensures flexible configuration and reliable performance

64Ch POTS Telephone over Fiber Technical Indexes

Product Name	64 channel telephone over fiber converter
Product Model	LNK-PCM64 Series
Description	FXO/FXS Ordinary telephone
Telephone Ports	64 telephone port RJ11 port
Switch Terminal	Ordinary telephone or PBX, PBX (PBX), public telephone outside the PSTN
FXS	Ringing voltage: 75V, ringing frequency: 25HZ
FXO	Second line input impedance:600Ω (hook), return loss: 40db, ring detection voltage:35V
Ring detection frequency	17HZ-60HZ, second-line input impedance: 600Ω(hook), return loss: 40 db
Broadband Voice	8KHZ
Connection	Point to point, telephone to telephone, telephone to switch
Code	PCM code
Fiber Ports	FC/UPC
Ethernet Ports (optional)	Interface rate: 10/100 Mbps, half/full duplex auto-negotiation Interface Standard: Compatible with IEEE 402.3, IEEE 402.1Q (VLAN) MAC Address Capability: 4096 Connector: RJ45, support Auto-MDIX
Transmission distance	Single-mode single fiber 20KM
Environmental Specifications	Operating Temperature: -35°～ 75°C
	Storage Temperature: -40°～ 45°C
	Operating Humidity: 0%～95%, non-condensing
Total power consumption	3w
Power supply	Built-in power supply, Input:AC110-240V 50/60Hz,

64Ch POTS Telephone over Fiber Dimensions

64Ch POTS Telephone over Fiber Ordering Information

Model	Description
LNK-PCM64	Analog Telephone to F/O Converter: 64-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, AC110-240V, used by pairs

64Ch POTS Telephone over Fiber Application

64 Channel Analog Telephone Over Fiber Extender Ring Voltage Detection 1
