商品の詳細:
お支払配送条件:
|
| ポート: | 8×rj45（10/100/1000mbps poe+） | ポー標準: | IEEE 802.3af/at |
|---|---|---|---|
| 電源入力: | 48–57VDC、冗長端子ブロック | 消費電力: | 245W（ポーオン）、5W（ポーオフ） |
| ハウジング: | アルミニウム、IP40、ディンレール/ウォールマウント | 寸法: | 150×115×50 mm |
| ハイライト: | Unmanaged industrial PoE+ Ethernet switch,8-port Gigabit PoE switch hardened,Industrial Ethernet switch 30W per port |
||

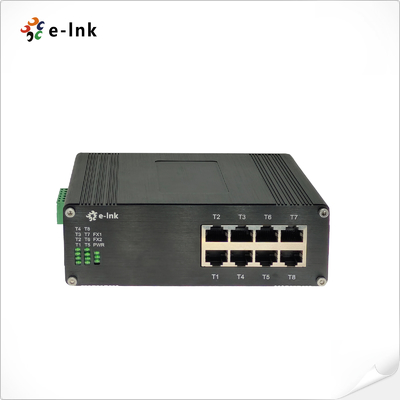

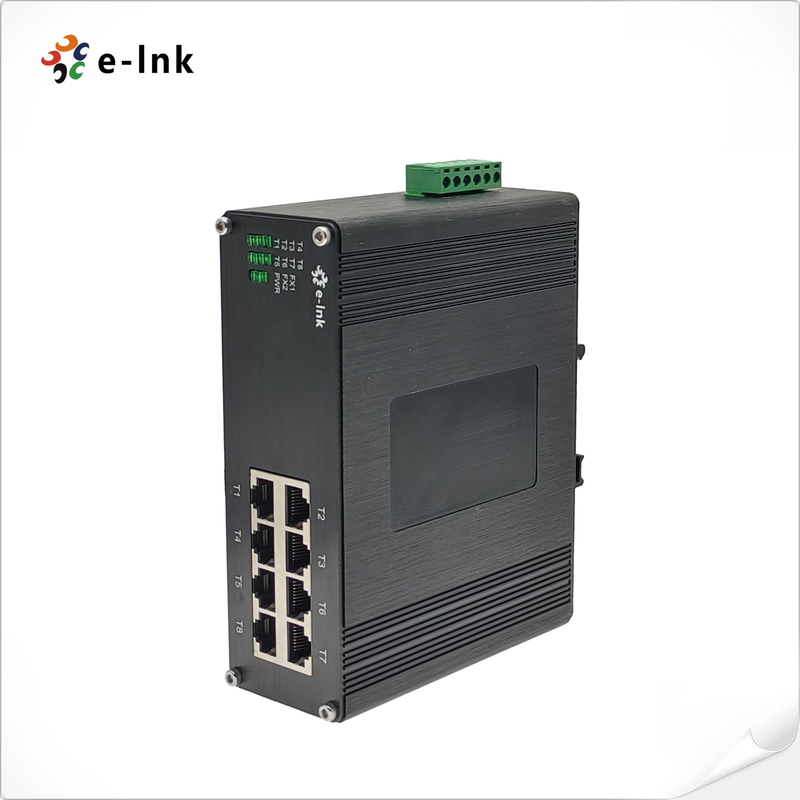

Unmanaged Industrial 8-Port Gigabit PoE+ Ethernet Switch 30W/Port Hardened
Overview
The LNK-IMC008GP Series is an unmanaged industrial Gigabit PoE+ Ethernet switch
featuring 8 RJ45 ports delivering up to 30W per port. With high-speed 1Gbps throughput,
16K MAC addresses, and 10K jumbo frame support, it ensures reliable data and power
delivery for IP cameras, wireless access points, and other powered devices. Rugged IP40
aluminum housing, redundant 48–57VDC inputs, and a wide -40°C to 80°C operating range
make it ideal for industrial and harsh-environment applications.
Features
8× 10/100/1000Base-TX PoE+ ports, 30W per port, total 245W
Unmanaged plug-and-play, no configuration required
High-performance switching: 16Gbps switch fabric, 2M-bit buffer, 10K jumbo frame, 16K
MAC addresses
Rugged industrial design: IP40 dustproof, aluminum enclosure, shock and vibration resistant
Wide temperature range: -40°C to 80°C
Redundant 48–57VDC power inputs with overload and reverse polarity protection
Low idle power consumption: 5W (PoE off)
Flexible mounting: DIN-Rail or wall-mountable
Energy-efficient: IEEE 802.3az EEE, supports 802.3x flow control
High reliability: MTBF >200,000 hrs, CE/FCC compliant
Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE802.3x Flow control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
2M bits |
|
Switch Fabric: |
16 Gbps |
|
Max Packet Length: |
10K Bytes |
|
Address Table Size: |
16K MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
245W Max. (PoE in use) |
|
5W Max. (PoE not in use) |
|
|
Standard: |
IEEE802.3af/at |
|
PoE: |
|
|
Port: |
RJ45 Port 1 ~ Port 8 |
|
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
Application
