| コネクタ: | 8 x RJ45 | 標準: | IEEE802.3AF/at/bt |
|---|---|---|---|
| 入力電源: | 48〜57VDC、冗長電力（6ピン端子ブロック） | 消費電力: | 360Wマックス。 （使用中のポー） |
| 寸法（wxdxh）: | 150 x 115 x 50 mm | 重さ: | 0.6kg |
| 動作温度: | -40°C〜80°C（-40°F〜176°F） | ケーシング: | アルミニウムケース |
| ハイライト: | Industrial PoE switch 8 port rugged,Hardened PoE++ switch 100W,Industrial Ethernet switch with fiber |
||

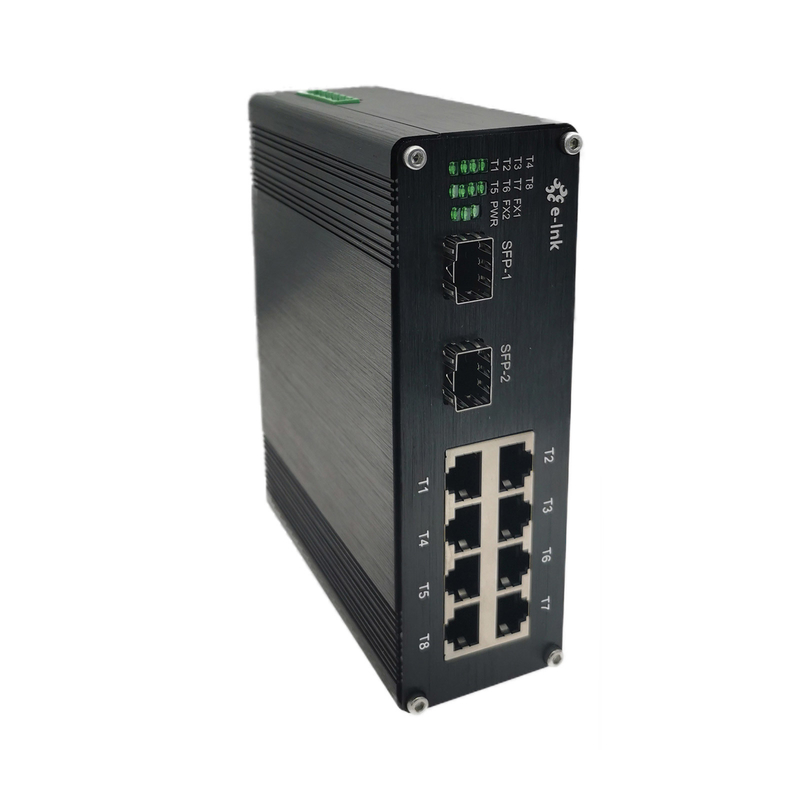

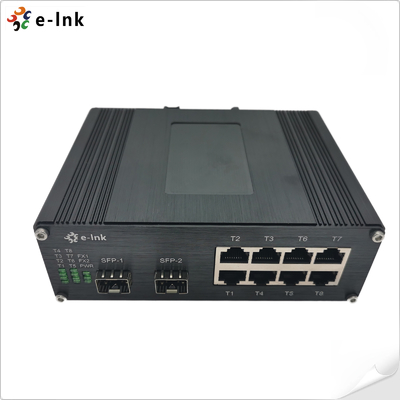

Industrial Ethernet Switch Overview
The LNK-IMC208GP100 Series is an industrial-grade hardened PoE++ switch engineered
for extreme environment deployment. Featuring 8×10/100/1000Base-TX RJ45 ports
with high-power PoE++ (IEEE 802.3bt) support delivering up to 100W per port, plus
2×100/1000Base-FX fiber optic ports compatible with both single-mode and multi-mode fiber.
This rugged switch provides simultaneous high-power delivery and data transmission
to power-intensive devices such as PTZ cameras, WiFi 6/6E access points, and industrial equipment
through standard Ethernet cables. Its hardened design ensures reliable operation in
wide temperature ranges (-40°C to 75°C) with DIN-rail mounting, IP30 protection,
and 6kV surge protection, making it ideal for industrial automation, smart city infrastructure,
and remote surveillance systems where both maximum power delivery and network reliability are critical.
Industrial Ethernet Switch Features
►8 × 10/100/1000Base-TX RJ45 ports + 2 × 100/1000Base-FX fiber ports for versatile connectivity.
►RJ45 ports support 10/100/1000Mbps full/half-duplex, auto-negotiation, and Auto MDI/MDIX.
►IEEE 802.3bt PoE compliant, delivering up to 100W per port with a total power budget of 360W.
►Flexible fiber connectivity options: SFP, SC, FC, or ST (optional).
►IEEE 802.3x flow control and IEEE 802.3az Energy Efficient Ethernet (EEE) for stable and energy-saving operation.
►Redundant power inputs ensure continuous and reliable performance.
►DIN-rail mount design, ideal for industrial installations.
►Rugged construction with a wide operating temperature range of -40°C to 80°C (-40°F to 176°F).
Industrial Ethernet Switch Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
2.75M bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-FX (SFP, SC, FC, ST Optional) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
360W Max. (PoE in use) |
|
5W Max. (PoE not in use) |
|
|
Standard: |
IEEE802.3af/at/bt |
|
PoE: |
|
|
Port: |
RJ45 Port 1 ~ Port 8 |
|
Max. Power per Port: |
100W Max per port |
|
Power Pin Assignment |
1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet(Per Port): |
Link/Activity |
|
Fiber: |
FX1, FX2 |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Industrial Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC208GP100 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m |
|
LNK-IMC208GP100-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC208GPS100-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC208GPF100-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC208GP100-SFP |
Industrial 8-port 10/100/1000BASE-T (8-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
