EN50155 Certified 90W PoE Injector Wide Voltage Input 12-48V DC

EN50155 Industrial 10/100/1000M/2.5G/5G 90W PoE Injector with M12 connector

EN50155 Industrial PoE Injector with M12 Connector Overview

The E-link EN50155 Compliant PoE Injector is a robust, industrial-grade power solution that has been

designed to meet the high demands of transportation applications, including those in rolling stock,

railway systems and vehicle networks. This IEEE 802.3bt-compliant injector delivers up to 90W of PoE++

power through a 1-port 10/100/1000/2.5G/5G Base-T(X) interface with M12 connectors for vibration-resistant

connectivity. This product features intelligent Power over Ethernet (PoE) detection and wide voltage input

(12-48 V DC). It automatically safeguards non-PoE devices while withstanding extreme environmental conditions,

such as shock, vibration and temperature fluctuations. This makes it ideal for mission-critical railway signalling,

onboard surveillance and mobile communications.

EN50155 Industrial PoE Injector with M12 Connector Features

• Wide-range 12–48V DC power input for flexible deployment

• Fully compliant with IEEE 802.3af/at/bt PoE standards

• Supports 10/100/1000/2.5G/5G Base-TX for combined power and data output

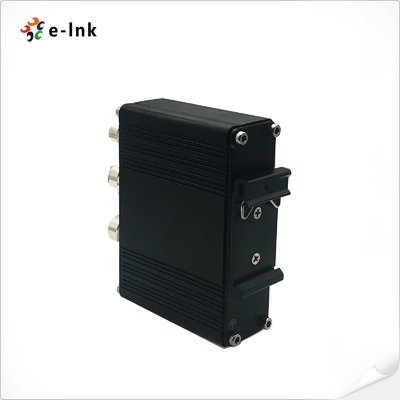

• Compatible with DIN-rail and wall-mount installation methods

• Equipped with Type-A M12 connectors for secure and robust connections

• Compact design: 95 × 70 × 30 mm

• Lightweight construction: 0.25 kg

• Durable aluminum housing for enhanced protection

• LED indicators for PoE status and diagnostics

• Environmentally hardened for -40°C to +80°C (-40°F to +176°F) operation

EN50155 Industrial PoE Injector with M12 Connector Technical Indexes

EN50155 Industrial PoE Injector with M12 Connector Ordering Information

EN50155 Industrial PoE Injector with M12 Connector Application
