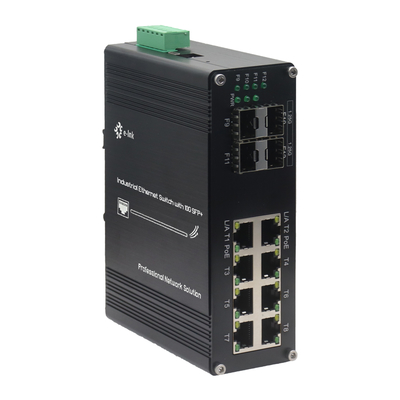

Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Overview
The LNK-IMC408GLP-SFP Series is a hardened, managed 8-port 10/100/1000Base-T 802.3at PoE+ switch
with 4 SFP fiber ports, designed for industrial and outdoor networking. The device features
eight Gigabit Ethernet ports (auto-negotiating, MDI/MDI-X) and four 1000Base-X SFP slots
(supporting single/multi-mode fibre). Engineered for challenging environments, it delivers exceptional
reliability for IP cameras, wireless access points, and remote network integration with advanced management
and Power over Ethernet (PoE) support (30W per port).
LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Features
LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Technical Indexes
|
Ethernet |
||||
|
Standards: |
IEEE802.3 10BASE-T |
|||
|
IEEE802.3u 100BASE-TX/FX |
||||
|
IEEE802.3ab 1000BASE-T |
||||
|
IEEE802.3z 1000BASE-X |
||||
|
IEEE802.3p QoS |
||||
|
IEEE802.3af/at Power over Ethernet |
||||
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|||
|
148,800pps (100Mbps) |
||||
|
1,488,000pps (1000Mbps) |
||||
|
Packet Buffer Memory: |
2.75M bits |
|||
|
Processing Type: |
Store-and-Forward |
|||
|
Backplane bandwidth |
32Gbps |
|||
|
Max Packet Length: |
16K Bytes Jumbo Frame |
|||
|
Address Table Size: |
16K MAC Addresses |
|||
|
Interface |
||||
|
Connector: |
8 x RJ45 |
|||
|
Optical Port: |
4 x 1000Base-X SFP |
|||
|
PoE (Power over Ethernet) |
||||
|
Standard: |
IEEE 802.3at Power over Ethernet Plus |
|||
|
IEEE 802.3af Power over Ethernet |
||||
|
Port: |
RJ45 |
|||
|
PoE output: |
30W/port (max) |
|||
|
Power Pin Assignment |
(1,2+, 3,6-) (4,5+, 7,8-) |
|||
|
PoE Budget: |
Up to 240-watt PoE budget |
|||
|
Environmental |
||||
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity: |
5% to 95% non-condensing |
|||
|
MTBF |
> 100,000 hrs |
|||
|
Electrical and Mechanical |
||||
|
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
|||
|
Power Consumption: |
PoE in Use<240W |
|||
|
Protection: |
||||
|
Power Input Overload: |
Automatic Resettable |
|||
|
Reverse Polarity: |
Present |
|||
|

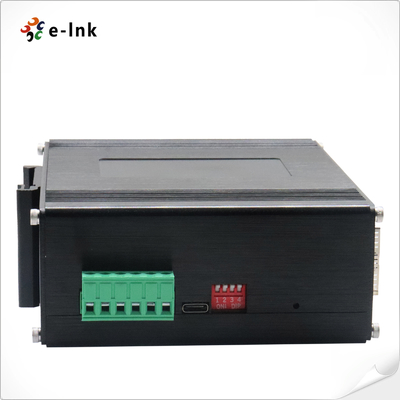

DIP Switch |
||||
|
4-digit DIP switch function
|
DIP |
Function |
Settings |
|
|
SW 1 |
Switch serial port mode |
ON - Enabled |
OFF - Disabled |
|
|
SW 2 |
reserved |
ON - Enabled |
OFF - Disabled |
|
|
SW 3 |
reserved |
ON - Enabled |
OFF - Disabled |
|
|
SW 4 |
reserved |
ON - Enabled |
OFF - Disabled |
|
|

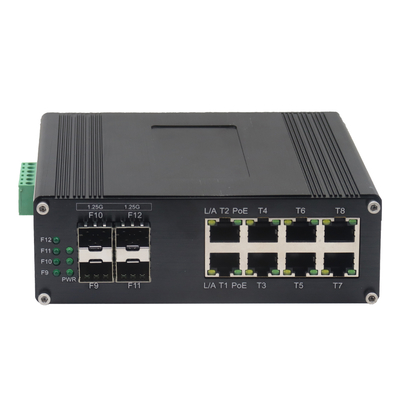

LED Indicators: |
||||
|
PWR: |
Power Status |
|||
|
Ethernet (Per Port): |
Link/Activity |
|||
|
PoE: |
PoE Status |
|||
|
Fiber: |
Gigabit SFP Port: F9~F12 |
|||
|
Dimensions (WxDxH): |
149 x 114 x 50 mm |
|||
|
Weight: |
0.55Kg |
|||
|
Casing: |
Aluminum Case |
|||
|

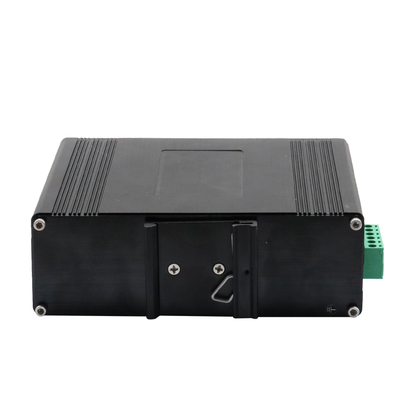

Mounting Options: |
DIN-Rail mount |
|||
|
WEB Management Functions |
||||
|
System Status |
Device IP |
|||
|
Port Configuration |
Port Settings, Port Isolation, Port Priority, Optical Power DDM, Port Rate Limiting, Storm Control, PoE |
|||
|
Layer 2 Features |
VLAN Configuration, MAC Address Management, MAC Address Aging, 802.1p Priority Mapping, Queue Scheduling, ACL, MTU Configuration |
|||
|
Port Statistics |
Port Counters |
|||
|
Link Backup |
ERPS, Port Aggregation, Rapid Spanning Tree |
|||
|
Network Diagnostics |
Port Mirroring |
|||
|
System Management |
Device Address, User Password, File Management |
|||
|
Default IP Address |
192.168.40.253 |
|||
|
Default Username |
admin |
|||
|
Default Password |
admin |
|||
|
Regulatory Approvals |
||||
|
ISO9001, CE, RoHS, FCC |
||||
|
EN55022:2010+AC: 2011, Class A |
||||
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
||||
|
EN 61000-3-3: 2013 |
||||
|
EN55024:2010 |
||||
|
IEC 61000-4-2: 2008 (ESD) |
||||
|
IEC 61000-4-3: 2010 (RS) |
||||
|
IEC 61000-4-4: 2012 (EFT) |
||||
|
IEC 61000-4-5: 2014 (Surge) |
||||
|
IEC 61000-4-6: 2013 (CS) |
||||
|
IEC 61000-4-8: 2009 (PFMF) |
||||
LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC408GLP-SFP |
Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Application
