商品の詳細:
お支払配送条件:
|
| 製品名: | 産業8左舷POEのスイッチ | 入力電源: | 12~58VDCの余分な力（6ピン ターミナル ブロック） |
|---|---|---|---|
| 消費電力: | 最大5W | 寸法（wxdxh）: | 150 × 115 × 50 mm |
| 重量: | 0.6kg | 動作温度: | -40°C〜80°C（-40°F〜176°F） |
| ハイライト: | 8-Port Industrial Ethernet Switch,Industrial Ethernet Switch With Fiber Port |
||

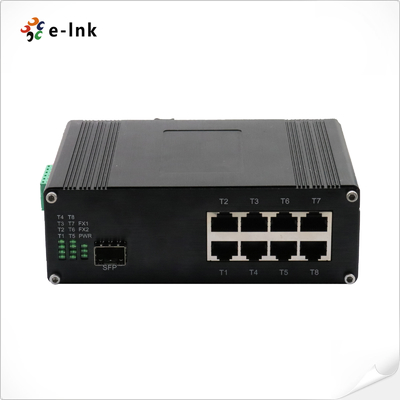

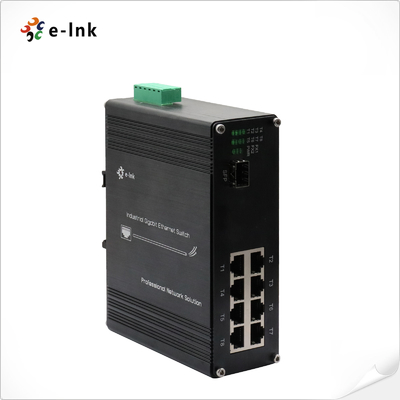

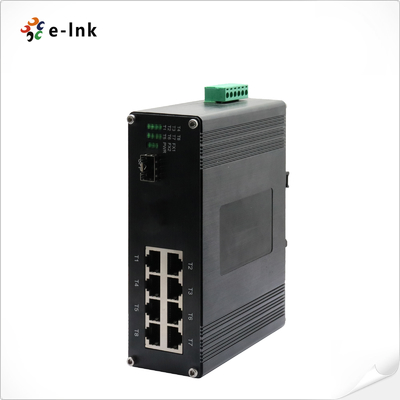

LNK-IMC108 Industrial Ethernet Switch Overview
The LNK-IMC108 is an Industrial Ethernet Switch featuring 8 10/100Base-TX RJ45 ports and
1 100Base-FX fiber port, designed to deliver reliable and stable network connectivity
in harsh industrial environments.
Each RJ45 port supports 10/100Mbps, full/half-duplex and auto MDI/MDI-X, ensuring it works
with a wide range of Ethernet devices. The fibre port works with both single-mode and multi-mode fibres,
using 1 or 2 cores, to allow for long-distance communication between remote sites.
The LNK-IMC108 is designed for industrial uses like IP surveillance, wireless AP bridging,
or machine-to-machine communication. It is made to be strong and durable,

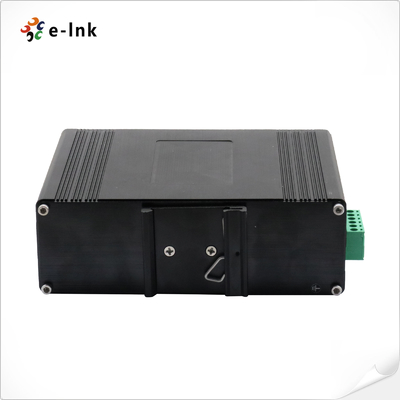

It is also easy to mount on a DIN rail.
It is perfect for expanding networks in factory automation, intelligent transportation, and outdoor areas.
LNK-IMC108 Industrial Ethernet Switch Features
LNK-IMC008 presents the following characteristics:
►8x 10/100Base-TX ports + 1x 100Base-FX fiber port
►Supports Single-mode & Multi-mode fiber (1 or 2 core)
►Auto MDI/MDI-X & auto-negotiation for hassle-free setup
►SFP, SC, FC, ST Optional
►Industrial-strength design for harsh environments
►Ideal for IP cameras, wireless APs, and remote networks
LNK-IMC108 Industrial Ethernet Switch Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3x Flow Control |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
Packet Buffer Memory: |
512K bits |
|
Processing Type: |
Store-and-Forward |
|
Address Table Size: |
1024 MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
1 x 100Base-FX (SFP, SC, FC, ST Optional) |
|
Ethernet Port |
RJ45 Port 1 ~ Port 8 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~58VDC , Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Fiber: |
FX1 |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Metal Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
LNK-IMC108 Industrial Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC108 |
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
|
LNK-IMC108-20 |
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC108S-20 |
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC108F-20 |
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC108-SFP |
Industrial 8-port 10/100BASE-T + 1-port 100BASE SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
