商品の詳細:
お支払配送条件:
|
| 電源入力: | 12~48V DC (ターミナルブロック) | 出力電力PoE: | 最大95W（48VDC）、95W（24VDC）、60W（12VDC） |
|---|---|---|---|
| 動作温度: | -40°C〜80°C（-40°F〜176°F） | 寸法: | 95 x 70 x 30 mm (3.74 x 2.76 x 1.18 インチ) |
| 重さ: | 0.25kg (0.55ポンド) | 取り付けオプション: | DINレールと壁面取り付けオプションをご利用いただけます |
| ハイライト: | Industrial Gigabit PoE Injector,95W Industrial Gigabit PoE Injector,Industrial Gigabit PoE Injector |
||

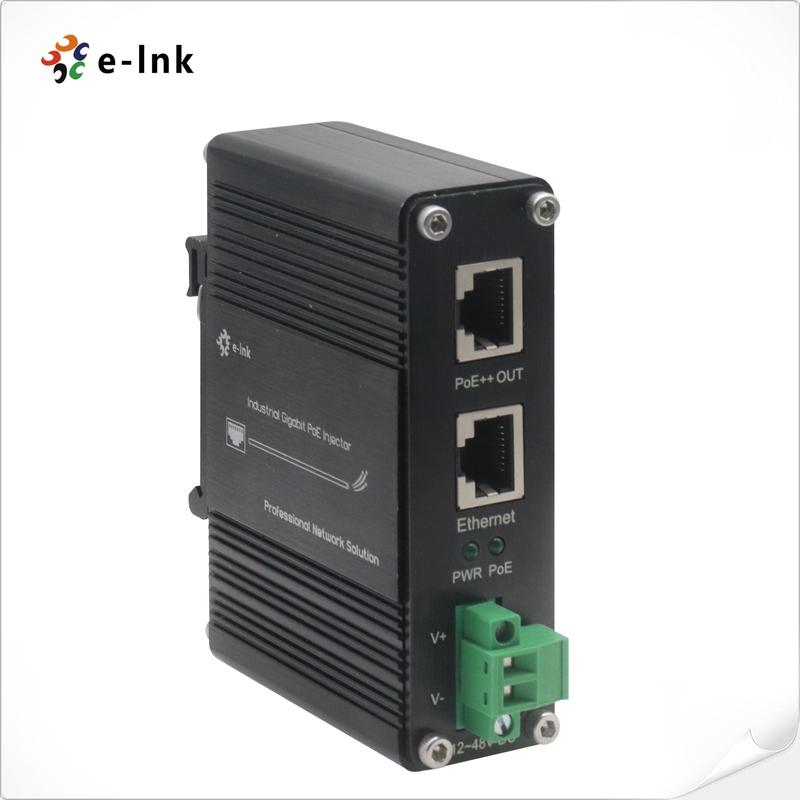

Industrial Gigabit PoE Injector with 95W Power and Wide DC Input Range
Overview
This industrial-grade Gigabit PoE injector provides a high 95W power output and supports
IEEE 802.3bt and LTPoE++ standards, making it ideal for powering PoE devices such as IP
cameras and wireless access points. It accepts a wide DC input range of 12~48V, with
voltage boosting functionality to ensure stable power delivery. The device features RJ45
Ethernet data input and PoE output ports, both supporting 10/100/1000Base-T, enabling
efficient data transmission up to 100 meters. With its durable aluminum housing, the injector
supports both DIN rail and wall-mount installations. It operates in harsh environments with a
temperature range of -40°C to 80°C, making it suitable for applications in surveillance, industrial
automation, and wireless networking.
Features
Technical Indexes
|
Standards: |
IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control |
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Connector: |
2x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
100W Max. |
|
Power over Ethernet: |
|
|
Standard: |
IEEE 802.3bt 4-pair Power over Ethernet |
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3af Power over Ethernet |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) |
|
PoE Budget: |
Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC) |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
IP40 Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Standard Accessories |
|
|
Package Contents |
LNK-INJ301-90 |
|
User's manual |
|
|
Wall-mount kit |
|
|
DIN-mount kit |
|
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-INJ301-90 |
Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
