| 入力パワー:: | 12～48V DC、4ピンメスM12 Aコード | 電力消費量:: | 最高95W |
|---|---|---|---|
| Standard：: | IEEE802.3af/at/bt | ポート:: | M12コネクタ (8ピンの女性 M12Aコード) |
| 寸法（幅x奥行きx高さ）：: | 95 x 70 x 30 mm | 重さ：: | 0.25kg |
| ハイライト: | M12 PoE Injector,EN50155 PoE Injector,Industrial PoE Injector |
||

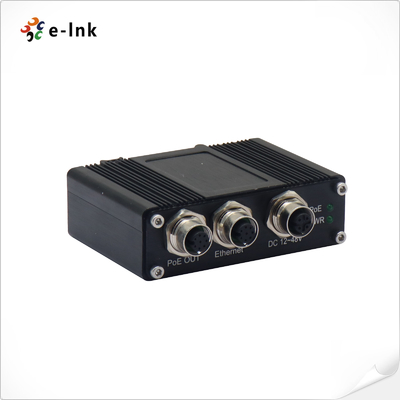

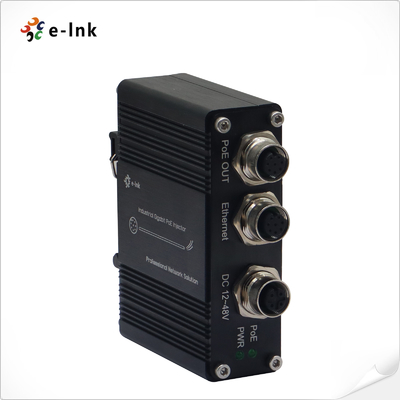

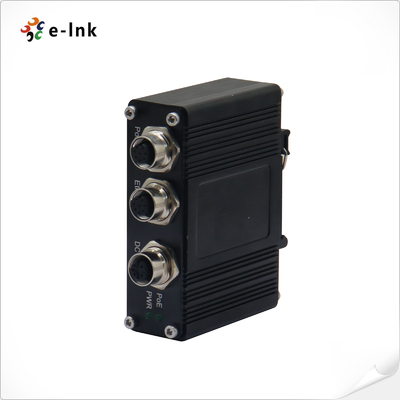

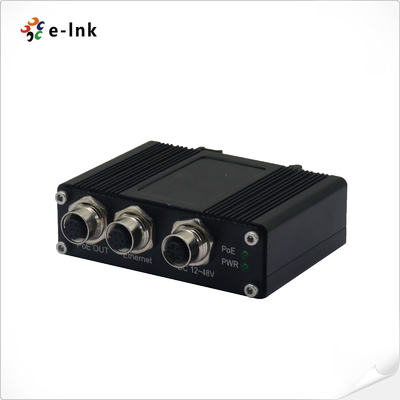

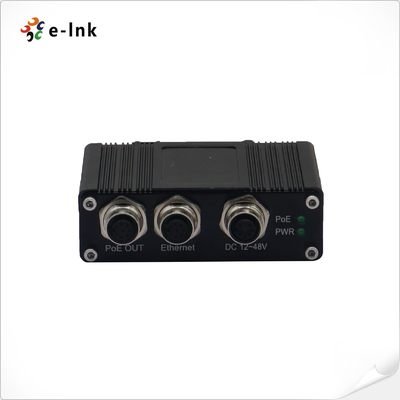

EN50155 Industrial 10/100/1000M 90W PoE Injector with M12 connector
PoE Injector Overview
The E-link LNK-INJ301-90-M12 is an industrial-grade PoE injector compliant with the EN50155 standard , designed for harsh industrial applications such as railways, rolling stock, and rail transit. Compliant with the IEEE 802.3bt standard , it provides one 10/100/1000Base-T(X) PoE output port and features intelligent detection , supplying power only when a valid PoE device is detected, preventing damage to non-PoE devices. Its M12 connector ensures vibration and anti-loosening, making it suitable for high-shock and vibration environments. It supports a wide input voltage range of 12-48V DC , making it suitable for high-availability applications. Its high reliability, stable power supply, and intelligent protection make it an ideal choice for applications such as rail transit, vehicle networks, and industrial automation.
PoE Injector Features
► 12~48V DC Power Input
► Fully compliant with IEEE802.3af/at/bt
► Support 10/100/1000Base-TX for power and data output
► Support DIN-Rail & Wall-mount installation
► Use Type-A M12 connectors to ensure tight and robust connections
► Small Size: 95 x 70 x 30mm
► Weight: 0.25KG
► Aluminum Case
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
PoE Injector Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| IEEE802.3bt Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T |
| Connector: | 2x M12 connector (8-pin female M12 A-coding) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48V DC on 4-pin female M12 A-Coding |
| Power Consumption: | 95W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at/bt |
| Port: | M12 connector (8-pin female M12 A-coding) |
| Max. Power per Port: | 90W Max |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A, EN50155 | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500V | |
| ESD: 4KV/8KV | |
PoE Injector Order Information
| Model | Description |
| LNK-INJ301-90-M12 | EN50155 Industrial 1-port 10/100/1000M 90W M12 PoE Injector 12~48V DC Power Input |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
