商品の詳細:
お支払配送条件:
|
| 最大距離: | Cat5UTP 100mまで | 入力電源: | DC18V~48V (PoE:DC48V) |
|---|---|---|---|
| 消費電力: | 最大8W (PoC未使用) / 最大60W (PoC使用時) | スタンダード: | IEEE802.3af/at |
| 寸法 (W x D x H): | 95 × 67 × 30 mm | 重量: | 0.5kg |
| ハイライト: | Industrial Ethernet over Coax Extender,DIN Rail Ethernet over Coax Extender,10/100Base-TX Ethernet over Coax Extender |
||
Ethernet over Coax Extender Overview

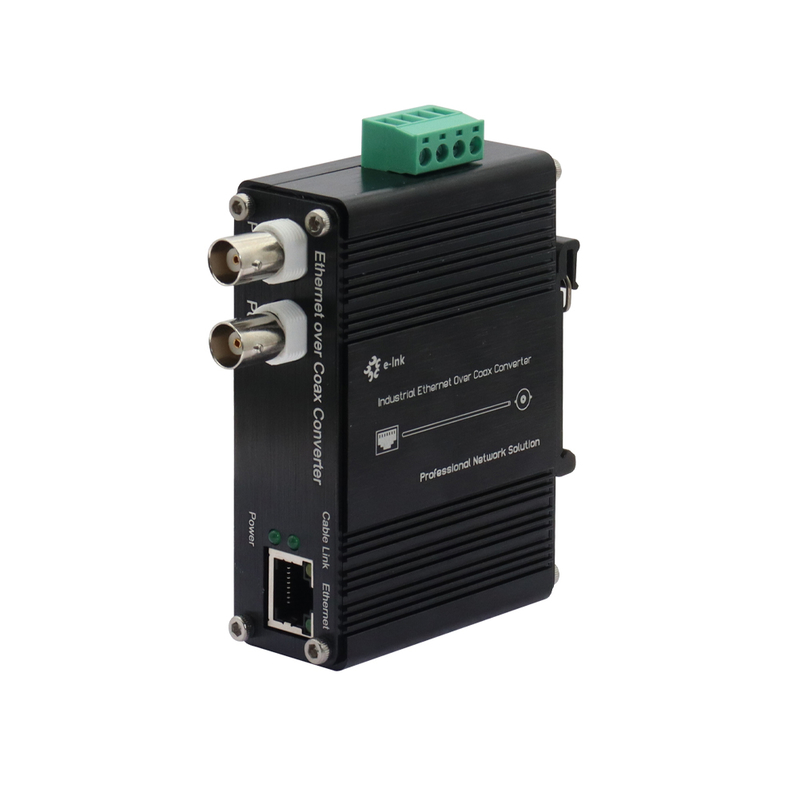

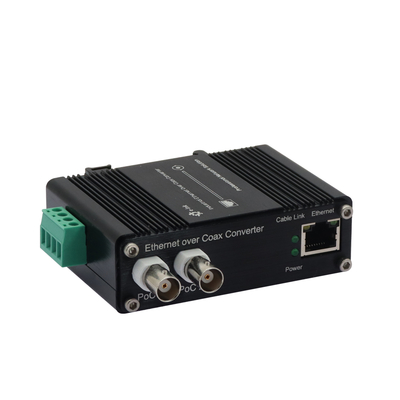

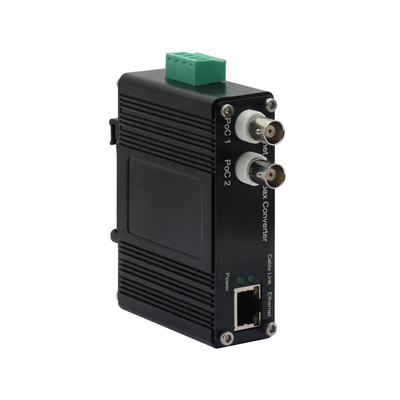

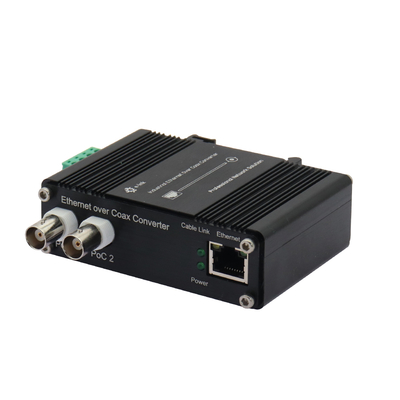

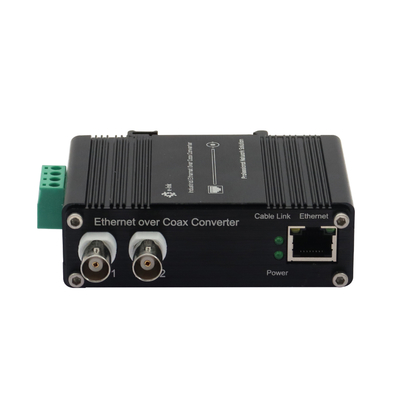

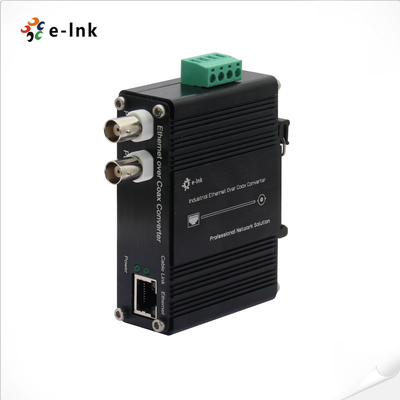

The LNK-DEC110 series DIN rail Ethernet to coaxial converter is a new type of Ethernet extension device
that can simultaneously transmit network signals and power through existing coaxial cables, achieving
multi-channel power + data transmission, with a maximum distance of up to 1200 meters
(power supply distance 300 meters). Dual BNC interfaces support the simultaneous connection of
two branches, with a total power supply of 100W, with a maximum power of 50W per channel.
The network speed can reach up to 100Mbps, with excellent lightning protection and anti-interference performance.
The device can be equipped with an optional industrial-grade intelligent automatic monitoring module
to detect network communication anomalies in real time and automatically restore the link to ensure
stable and uninterrupted network transmission and protect the security of the monitored area. It is widely used
in industrial environments such as CCTV monitoring and remote network extension.
Ethernet over Coax Extender Features
Ethernet over Coax Extender Technical Indexes
| Ethernet | |
| Standards | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX | |
| IEEE802.3af Power Over Ethernet | |
| IEEE802.3at Power Over Ethernet | |
| Cabling | 10Base-T: Cat 3,4,5, or above |
| 100Base-TX: Cat5 or above | |
| Maximum Distance | Cat5UTP up to 100m |
| Connector | 1 x RJ45 |
| Coaxial | |
| Cabling | Coaxial Cable (75 ohm) |
| Connector | 1 BNC (female) |
| Distance | Up to 1200m (no PoE), 300m (with PoE) |
| Data Rate | |
| Downlink (TX to RX) | 90Mbps (Max.) |
| Uplink (RX to TX) | 90Mbps (Max.) |
| Technology | Power Line Communication (PLC) |
| Protection | |
| Reverse Polarity | Present |
| Electrical and Mechanical | |
| Input Power | DC18V~48V (PoE: DC48V) |
| Power Consumption | 8W Max. (PoC not in use) |
| 60W Max. (Poc in use) | |
| LED Indicators | |
| Power (Power) | RED (Power On: keep lighting; Power Off: lighting off) |
| Coax (Cable Link) | GREEN (Flicker: signal transmission) |
| Ethernet | SPD, LINK/ACT, PoE(Transmitter) |
| PoE | |
| Standard | IEEE802.3af/at |
| Mode | B Mode |
| Port | RJ45 |
| Max. Power Per Port | 25.5W max.at RX(Powered Device) |
| 30W Max.at TX(Power Souring Equipment) | |
| Mode | Positive(VCC+): RJ45 Pin 4,5 |
| Negative(VCC-):RJ45 Pin 7,8 | |
| Dimensions (W x D x H) | 95 × 67 × 30 mm |
| Weight | 0.5kg |
| Casing | Aluminum case |
| Environmental | |
| Operation Temperature | -10˚C to 60˚C (14˚F to 140˚F) |
| Storage Temperature | -40˚C to 85˚C (-40˚F to 185˚F) |
| Relative Humidity | 5% to 90% non-condensing |
| MTBF | > 100,000 hrs |
| Regulatory Approvals |
ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V |
Ethernet over Coax Extender Ordering Information
| Model | Description |
| LNK-DEC110-T/R |
DIN-Rail EoC Converter, 1200m transmission distance, including Transmitter and Receiver, not including power supply adapter |
| LNK-DEC110P-T/R |
DIN-Rail EoC Converter with PoE+, 300m transmission distance, including Transmitter and Receiver, not including power supply adapter |
Ethernet over Coax Extender Application
