商品の詳細:
お支払配送条件:
|
| コネクタ: | 8 x RJ45 | オプティカルポート: | 1つのx 100Base-FX （SFP、SC、任意FC、ST） |
|---|---|---|---|
| イーサネット ポート: | RJ45 ポート 1 ~ ポート 8 | 動作温度: | -40°Cへの80°C （- 176°F）への40°F |
| 尺寸 (WxDxH): | 150 × 115 × 50 mm | 重量: | 0.6kg |
| ケース: | メタルケース | 取り付けオプション: | DINレール/壁掛け |
| ハイライト: | Fiber Port Industrial Ethernet Switch,Integrating Networks Industrial Ethernet Switch,8 TP ports Industrial Ethernet Switch |
||
Overview

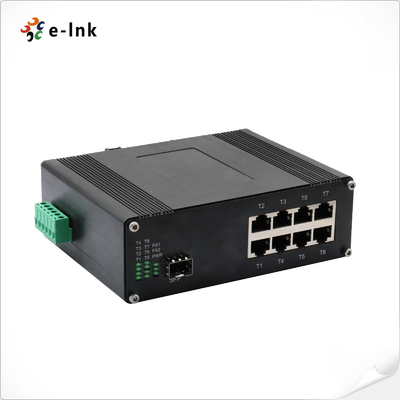

The LNK-IMC108 is an industrial-grade 8-port Fast Ethernet switch featuring 8×10/100Base-TX
copper ports and 1×100Base-FX fiber port, designed for reliable network connectivity in harsh
environments. The RJ45 ports support 10/100Mbps auto-negotiation, full/half-duplex operation, and
auto MDI/MDI-X crossover, ensuring plug-and-play installation. The 100Base-FX fiber port accommodates
both single-mode and multi-mode fiber (1 or 2 core), enabling stable long-distance transmission up to 2km
(multi-mode) or 20km/40km (single-mode).
Built for industrial applications, this rugged switch operates reliably in wide temperature ranges and features
a fanless, robust metal housing with high EMI protection. Its compact yet durable design makes it ideal for
surveillance systems (IP cameras), wireless networks (APs), factory automation, and other mission-critical
networking deployments where distance extension and noise immunity are required.
With easy DIN-rail mounting, low power consumption, and fiber-optic noise immunity, the LNK-IMC108 provides
a cost-effective and future-proof solution for industrial Ethernet networks.
Features
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
► 8 10/100Base-TX + 1 100Base-FX
► 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

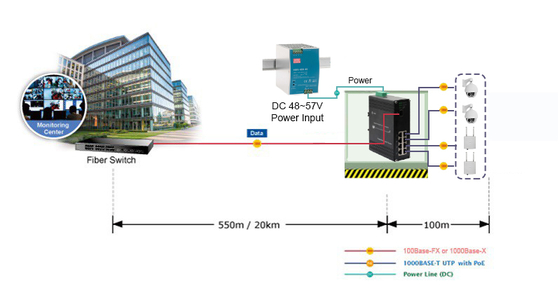

Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3x Flow Control | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Packet Buffer Memory: | 512K bits |
| Processing Type: | Store-and-Forward |
| Address Table Size: | 1024 MAC Addresses |
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 1 x 100Base-FX (SFP, SC, FC, ST Optional) |
| Ethernet Port | RJ45 Port 1 ~ Port 8 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~58VDC , Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | FX1 |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Metal Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
| Model | Description |
| LNK-IMC108 | Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-IMC108-20 | Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC108S-20 | Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC108F-20 | Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC108-SFP | Industrial 8-port 10/100BASE-T + 1-port 100BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
