商品の詳細:
お支払配送条件:
|
| コネクタ: | 2 x RJ45 | オプティカルポート: | 2 × SFP 1000Base-X または 100Base-FX (自動検出) |
|---|---|---|---|
| 入力電源: | 48~57VDCの4ピン ターミナル ブロック | 消費電力: | 189W マックス |
| 尺寸 (WxDxH): | 95 x 70 x 30のmm | 重量: | 0.25kg |
| ケース: | アルミケース | 取り付けオプション: | DINレール/壁掛け |
| ハイライト: | 2 port SFP PoE Switch,90W PoE Ethernet DIN Rail Switch,2 Port PoE Switch |
||

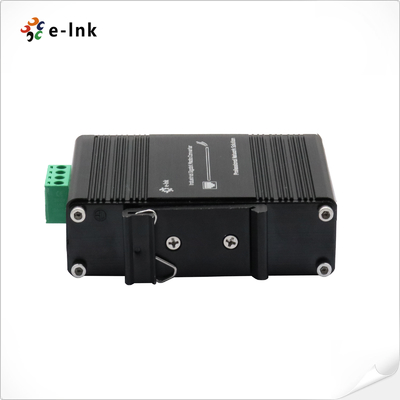

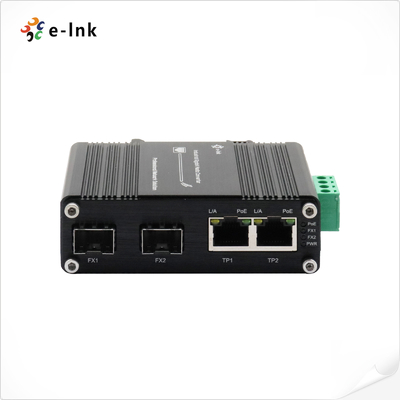

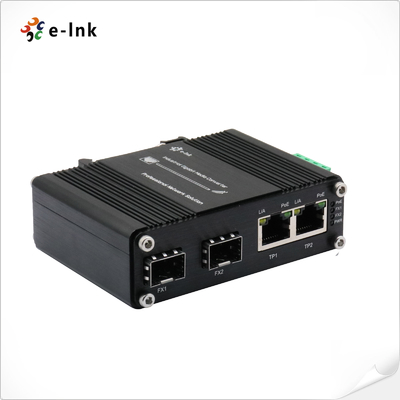

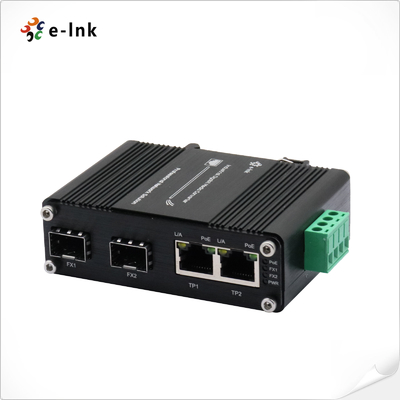

Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE + 2-Port 100/1000Base-X SFP Ethernet Switch
Overview
The LNK-IMC202GP90-SFP Series is an industrial-grade DIN rail-mounted PoE++ switch that delivers
ultra-high-power 90W PoE (IEEE 802.3bt) per port, making it ideal for demanding applications such as
PTZ cameras, high-performance wireless access points, and industrial IoT devices. Featuring two
10/100/1000BASE-T ports with 90W PoE++ support and one 100/1000BASE-X SFP slot, it provides
versatile connectivity for both copper and fiber networks.
Designed for extreme environments, this rugged switch operates in a wide temperature range of -40°C
to +80°C and complies with EN55022 EMI standards, ensuring reliable performance in harsh industrial
settings. The SFP slot accommodates various fiber modules (single-mode/multi-mode, 1/2 core), enabling
flexible long-distance or high-bandwidth deployments.
With its high-power PoE++ capability, robust DIN rail design, and support for both half/full-duplex modes,
the LNK-IMC202GP90-SFP is an excellent choice for industrial automation, smart surveillance, and outdoor
networking applications where high power and reliability are critical.
Features
► Supports IEEE802.3af/at PoE+ (30W) or IEEE802.3bt PoE++ (90W)
► Supports Link Fault Pass Through
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 48~57VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 80°C(-40°F to 176°F) operating temperature
► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| IEEE802.3bt Power over Ethernet | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Interface | |
| Connector: | 2 x RJ45 |
| Optical Port: | 2 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, 4-pin terminal block |
| Power Consumption: | 189W Max. |
| LED Indicators: | |
| PoE: | PD Plug Status |
| PWR: | Power Status |
| RJ45: | LINK/Activity |
| SFP: | LINK |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
EMI: | |
EMS: | |
Ordering Information
| Model | Description |
| LNK-IMC202GP90-SFP | Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE + 2-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
