商品の詳細:
お支払配送条件:
|
| コネクタ: | 2 x RJ45 | オプティカルポート: | 2 × SFP 1000Base-X または 100Base-FX (自動検出) |
|---|---|---|---|
| 入力電源: | 12~48VDCの4ピン ターミナル ブロック | 出力: | 48Vdc |
| 尺寸 (WxDxH): | 95 x 70 x 30のmm | 重量: | 0.25kg |
| ケース: | アルミケース | 取り付けオプション: | DINレール/壁掛け |
| ハイライト: | Mini Industrial 2-Port Ethernet Switch,12~48VDC 802.3at PoE Switch,2-Port 802.3at PoE Switch |
||
Overview

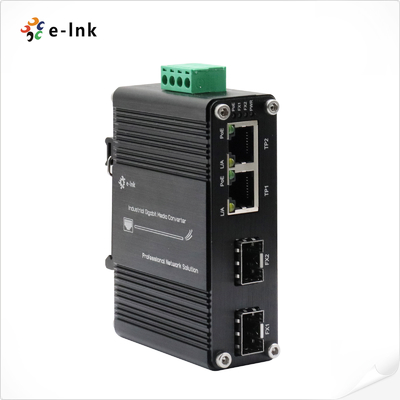

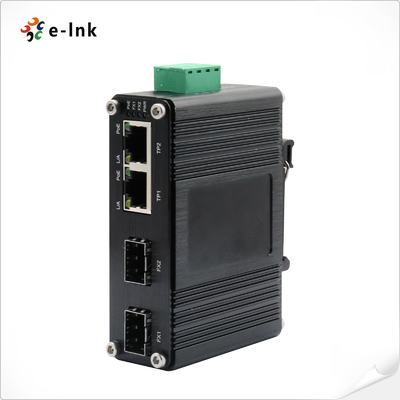

The LNK-IMC202GP-SFP Series is a DIN rail-mounted, industrial-grade PoE switch that delivers
IEEE 802.3at (30W) high-power PoE to connected devices, making it ideal for powering IP cameras,
wireless access points, and other PoE-enabled equipment. With two 10/100/1000BASE-T copper ports
(supporting half/full-duplex mode) and one 100/1000BASE-X SFP slot, it provides flexible connectivity
for both copper and fiber networks.
Built for harsh environments, this hardened switch operates in a wide temperature range of -40°C to +75°C
and complies with EN55022 EMI standards, ensuring reliable performance in industrial settings. The SFP
slot supports various fiber modules (single-mode/multi-mode, 1/2 core), enabling long-distance or
high-bandwidth deployments.
Thanks to its rugged DIN rail design, plug-and-play simplicity, and high-power PoE support, the
LNK-IMC202GP-SFP is a robust solution for industrial automation, surveillance, and outdoor networking
applications.
Features
► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+ (30W)
► Supports Link Fault Pass Through
► Supports Full/Half-duplex, Auto-negotiation
► 9K Bytes Jumbo Frame
► Power booster function with wide range 12~48VDC Power Input

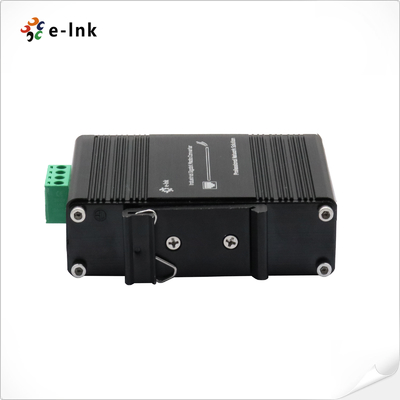

► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 80°C(-40°F to 176°F) operating temperature

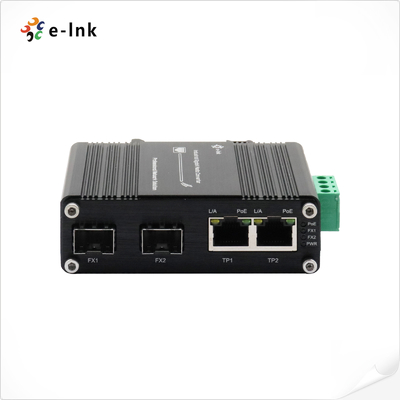

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Interface | |
| Connector: | 2 x RJ45 |
| Optical Port: | 2 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 4-pin terminal block |
| Output Power | 48VDC |
| Power Consumption: | 65W Max. |
| PoE | |
| Port: | RJ45 Port 1 ~ Port 2 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| LED Indicators: | |
| PWR: | Power Status |
| RJ45: | LINK/Activity |
| SFP: | LINK |
| PoE: | Per Port Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
EMI: | |
EMS: | |
Ordering Information
| Model | Description |
| LNK-IMC202GP-SFP | Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
