| Product name: | Ethernet Media Converter | Power supply: | DC 5~18V |
|---|---|---|---|
| Dimension: | 78 x 27 x 18 mm | Fiber Port: | SFP - 100/1000M adaptive |
| Weight: | 46g | Power: | 3W |

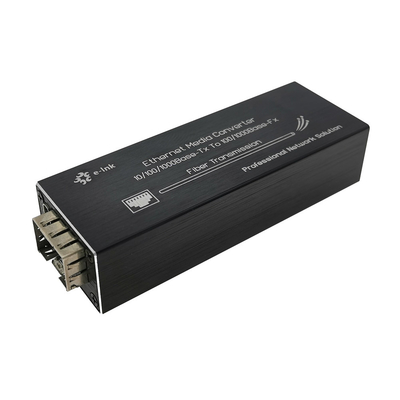

The LNK-M3011-SFP is an adaptive 10/100/1000Mbps Gigabit Ethernet media converter that seamlessly
interconnects copper and fiber networks. Compliant with IEEE 802.3, 802.3u, 802.3z, and 802.3ab
standards, it supports conversion between:
This conversion dramatically extends network transmission distances from the 100-meter limitation of
copper cabling up to a maximum of 120 kilometers over fiber optics. The converter supports operation
over multi-mode dual fiber, single-mode dual fiber, and single-mode single fiber.

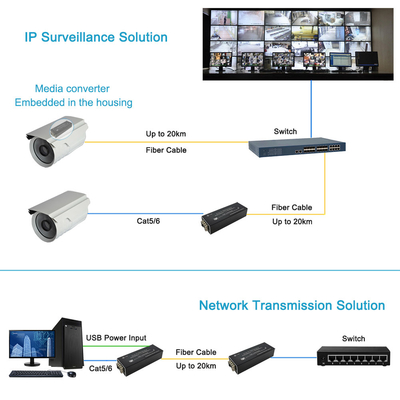

A key feature is its USB-powered operation. When plugged into a computer's USB port, the converter
automatically powers down with the computer, providing significant energy savings. This compact
design makes the LNK-M3011-SFP an ideal solution for "fiber-to-the-laptop" applications requiring
Gigabit fiber connectivity where local AC power is unavailable.
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |

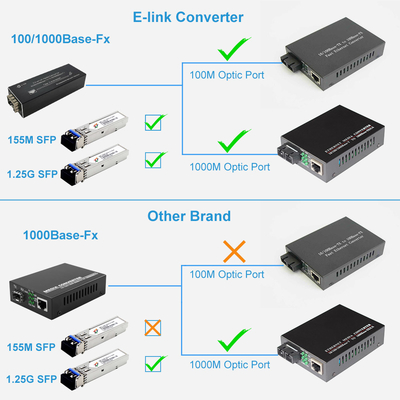

| Fiber Port | SFP - 100/1000M adaptive |
| Wavelength | 850nm/1310nm/1550nm (Based on SFP Module used) |
| Transmission distance |
Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m |
| Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP |
| Conversion means | Media conversion |
| LFP | Not Support |
| BER | <10-9 |
| MTBF | 100,000 hours |

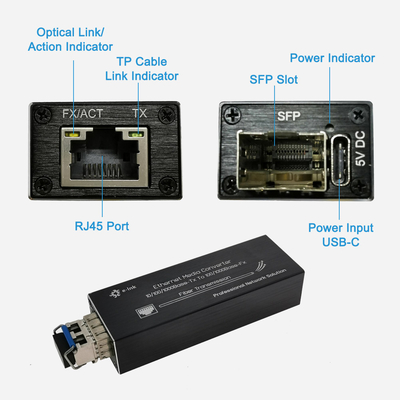

| LED indicator |
PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
| Power supply | DC 5V (Type-C) |
| Power consumption | <3W |
| Operating temperature | 0~45ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Weight | 46g |

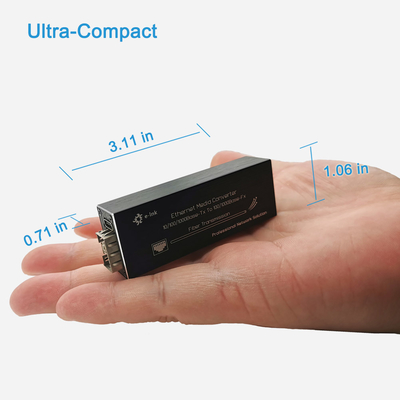

| Dimensions (W x D x H) | 78 x 27 x 18 mm |
Ordering Information
| Item | Description |
| LNK-M3011-SFP | Micro Mini Media Converter: 10/100/1000Base-T to 100/1000Base-X, SFP slot, not including SFP module, standalone, external power adaptor |
Features
Overview
